(35.310.AA[01]) - CONTROL VALVE INSTALL, NIBBLER & BREAKER

Запчасти Case CX55B (35.310.AA[01]) - CONTROL VALVE INSTALL, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

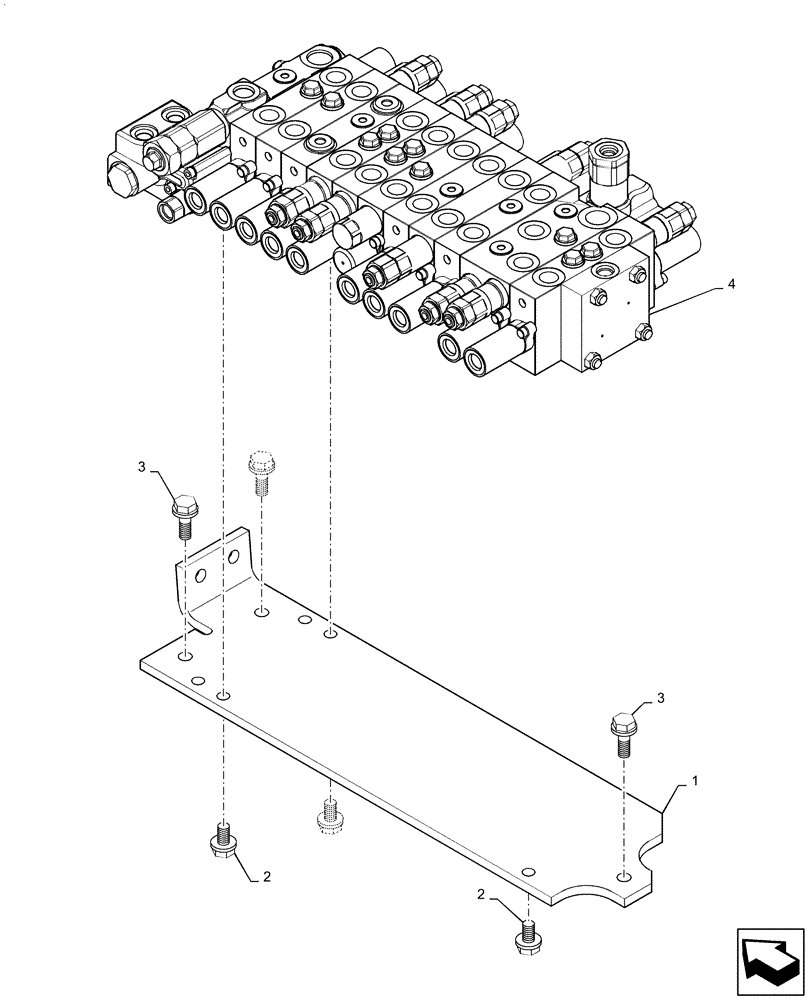

Схема запчастей Case CX55B - (35.310.AA[01]) - CONTROL VALVE INSTALL, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS
3
1
4
2
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Valve Install, PS64H00001F1

1шт.

1

PS64H01029P2

BRACKET

1шт.

2

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

3шт.

3

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

3шт.

4

PS30V00002F1

CONTROL VALVE

Assy

1шт.
