(35.739.AA[01]) - SWING CYLINDER ATTACHMENT

Запчасти Case CX55B (35.739.AA[01]) - SWING CYLINDER ATTACHMENT (35) - HYDRAULIC SYSTEMS

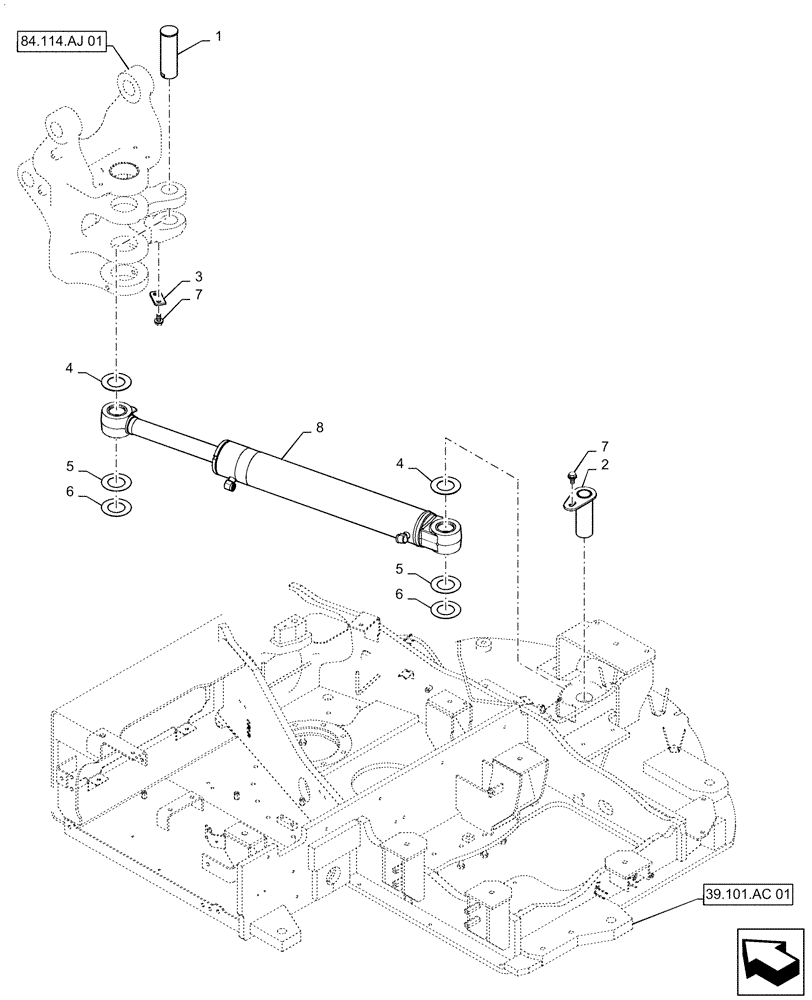

Схема запчастей Case CX55B - (35.739.AA[01]) - SWING CYLINDER ATTACHMENT (35) - HYDRAULIC SYSTEMS
3
4
5
2
7
5
7
6
39.101.ac 01
4
8
84.114.aj 01
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Cylinder Install, Swing, PS02B00011F1

1шт.

1

PS02B01053P1

PIN

1шт.

2

PS02B01087P1

PIN

1шт.

3

PH02B01065P1

PLATE

1шт.

4

2418T6856D3

SHIM

Spacer

2шт.

5

PH02B01067P1

SHIM,0.5mm Thk

6шт.

6

PY02B01187P1

SHIM,2.0mm Thk

2шт.

7

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

3шт.

8

PS01V00004F1

HYDRAULIC CYLINDER

Swing

1шт.
