(10.254.AI[02]) - EXHAUST MUFFLER

Запчасти Case CX55B (10.254.AI[02]) - EXHAUST MUFFLER (10) - ENGINE

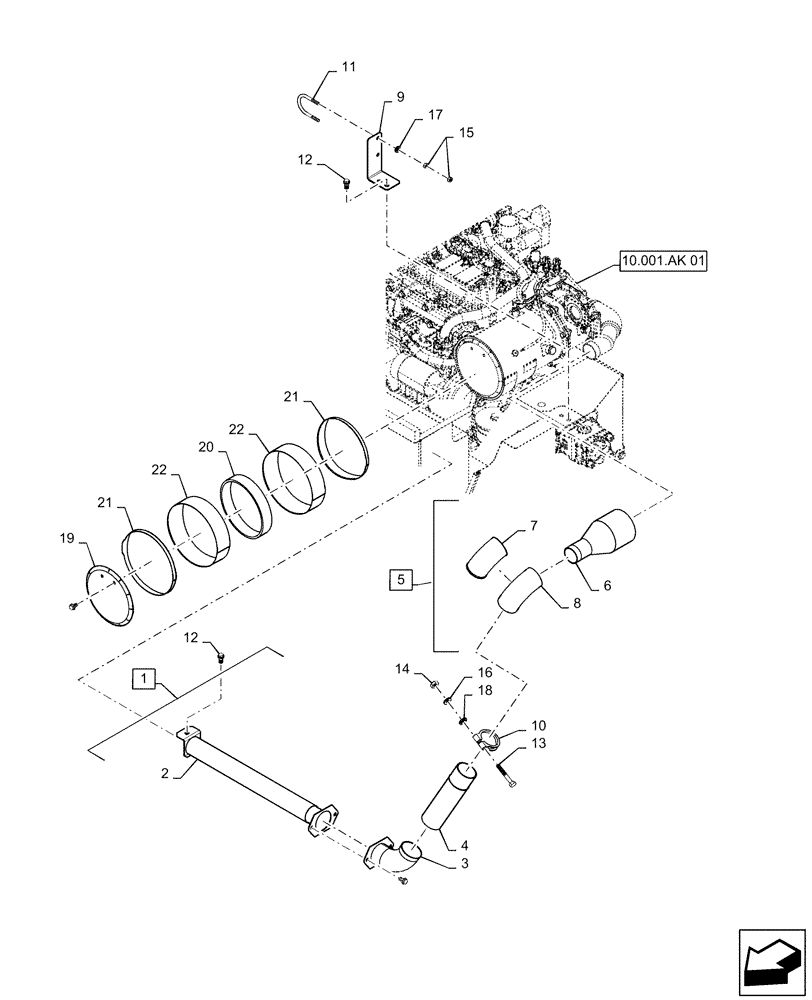

Схема запчастей Case CX55B - (10.254.AI[02]) - EXHAUST MUFFLER (10) - ENGINE
22
11
10
15
13
2
22
3
12
5
21
16
10.001.ak 01
20
14
4
19
18
6
21
9
7
1
17
12
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Muffler Assy, PS12P00001F1

1шт.

1

PS12P01101F1

EXHAUST SYSTEM PIPE

Tube Assy, Incl 2 - 4

1шт.

2

PS12P01001P3

EXHAUST SYSTEM PIPE

Tube, Exhaust

1шт.

3

PS12P01102P2

INSULATION

1шт.

4

PS12P01100P1

WIRE

3шт.

5

PS12P01103F1

EXHAUST SYSTEM PIPE

Tube Assy, Incl 6 - 8

1шт.

6

PS12P01006P1

EXHAUST SYSTEM PIPE

Tube

1шт.

7

PS12P01104P1

INSULATION

1шт.

8

PS12P01100P1

WIRE

2шт.

9

PS12P01008P1

PLATE

1шт.

10

PS12P01057P1

CLAMP

1шт.

11

2420T2948D4

BOLT

U

1шт.

12

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

5шт.

13

ZS18C10070

SCREW,Hex, M10 x 70mm

Cap

1шт.

14

ZN18C10008

NUT

1шт.

15

ZN18C08007

NUT

12шт.

16

ZW16H10000

WASHER

1шт.

17

ZW16H08000

WASHER

8шт.

18

ZW26X10000

LOCK WASHER

1шт.

19

PS12P01127P2

INSULATION

1шт.

20

PS12P01128P2

INSULATION

1шт.

21

PS12P01129P1

WIRE

3шт.

22

PS12P01139D1

INSULATION

3шт.
