(10.400.AY[02]) - RADIATOR HOSES, WITHOUT AIR CONDITIONER

Запчасти Case CX55B (10.400.AY[02]) - RADIATOR HOSES, WITHOUT AIR CONDITIONER (10) - ENGINE

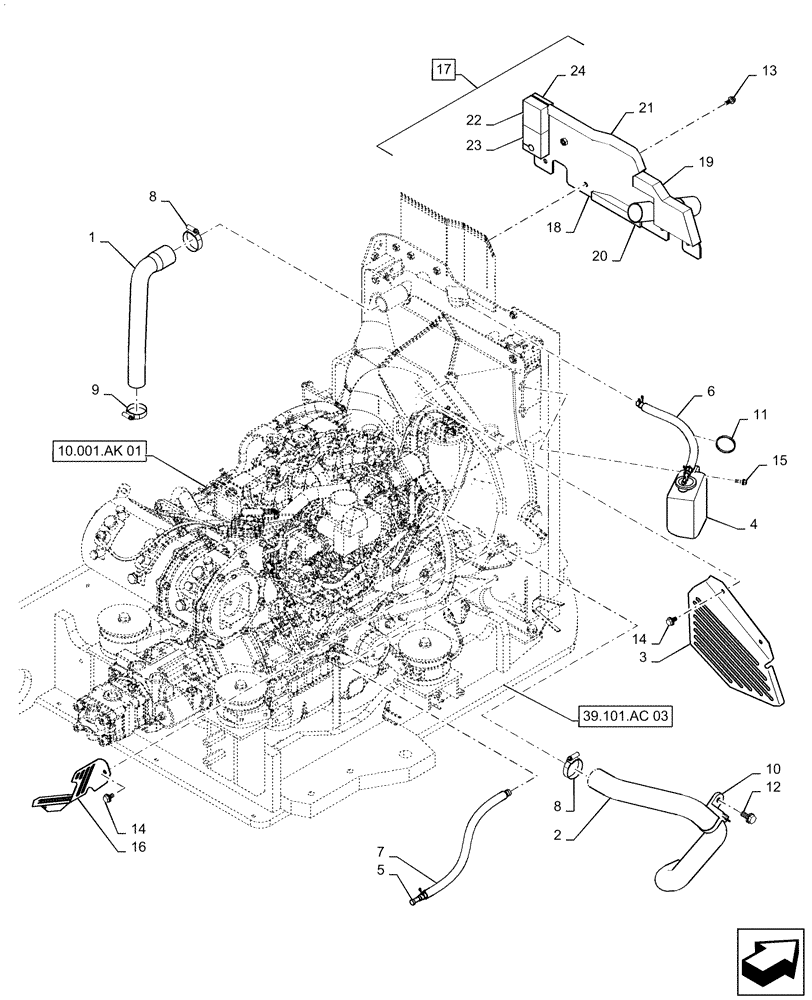

Схема запчастей Case CX55B - (10.400.AY[02]) - RADIATOR HOSES, WITHOUT AIR CONDITIONER (10) - ENGINE
2
14
3
8
6
24
19
10
9
23
11
7
20
16
5
39.101.ac 03
22
14
18
12
1
21
17
10.001.ak 01
4
15
13
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Radiator Group, Air Conditioner Less, PS05P00003F2

1шт.

1

PS05P01001P1

RADIATOR HOSE

1шт.

2

PS05P01002P1

RADIATOR HOSE

1шт.

3

PS05P01003P1

GUARD

1шт.

4

PU01P01024F1

RESERVOIR

Tank Assy, Water,Sub

1шт.

5

PW05P01117P1

PLUG

1шт.

6

HX81X13028DX

TUBE

1шт.

7

HX81X13032DX

TUBE

1шт.

8

ZC16X03900

CLIP

3шт.

9

ZC16X03300

FASTENER

Clip

1шт.

10

YN05P01668D1

CLIP

1шт.

11

PY01P01043D3

CABLE TIE,188mm L

Clip

1шт.

12

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

14

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

4шт.

15

ZM61C06020

BOLT

Sems

2шт.

16

PS05P01066P1

GUARD

1шт.

17

PS05P01004F2

PLATE

Assy, Incl 18 - 24

1шт.

18

PS05P01063P1

PLATE

1шт.

19

PS05P01074P1

RUBBER STRIP

1шт.

20

PS05P01012P1

INSULATION

1шт.

21

YT21C01039DD

WEATHERSTRIP

1шт.

22

PS05P01078P1

RUBBER STRIP

1шт.

23

PS05P01077P1

INSULATION

1шт.

24

PS05P01079P1

RUBBER STRIP

1шт.
