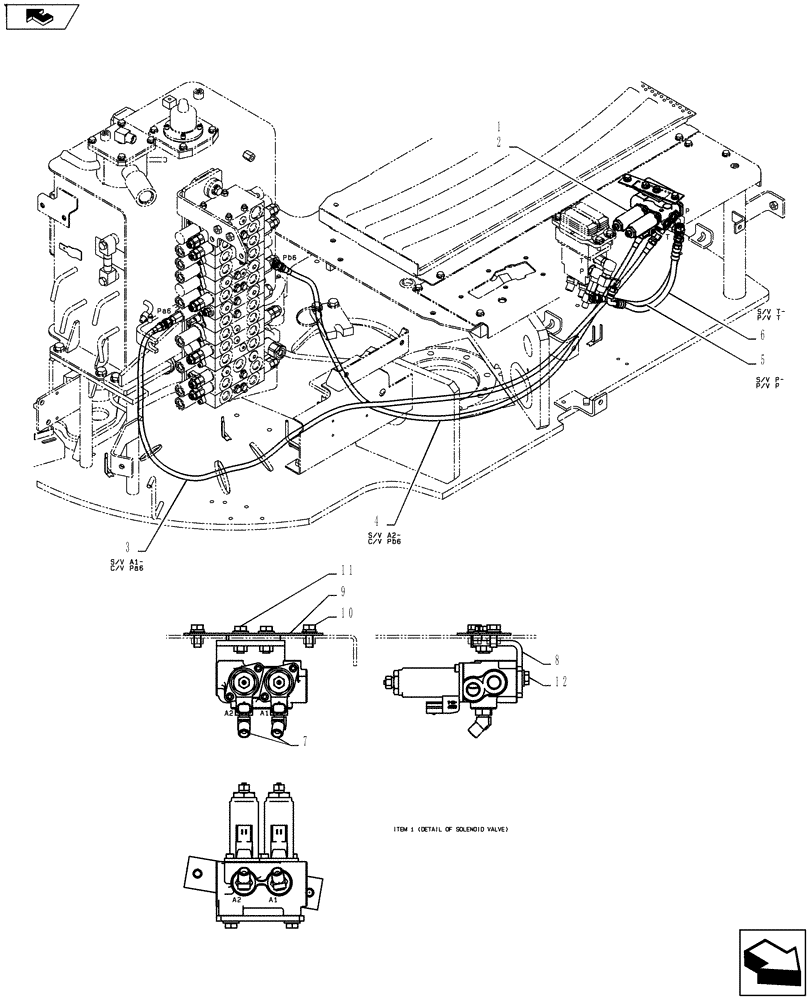

Запчасти Case CX55BMSR (01-032[01]) - CONTROL LINES, VALVE (ROTARY, HAND CONTROL) (35) - HYDRAULIC SYSTEMS

PY64H00110F1

Valve (Rotary, Hand Control)

1шт.

1

PY64H00099F1

Valve

1шт.

2

PW35V00002F1

SOLENOID VALVE

Assy. (Used Nibbler Open/Close Proportional, Revolution Left/Right Proportional, Extra Proportional Left/Right)

1шт.

3

HX24L04195DX

HOSE

1шт.

4

HX24L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

5

HX24L04042DX

HOSE

1шт.

6

HX32L04034DX

FLEXIBLE HOSE

1шт.

7

HH45S04004G1

45 ELBOW

2шт.

8

PW64H01103P1

BRACKET, SUPPORTING

1шт.

9

PW64H01089P1

SUPPORT

1шт.

10

ZM22C08020

BOLT

Sems

2шт.

11

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

12

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.
