(01-032[02]) - CONTROL LINES, VALVE (ROTARY, HAND CONTROL)

Запчасти Case CX55BMSR (01-032[02]) - CONTROL LINES, VALVE (ROTARY, HAND CONTROL) (35) - HYDRAULIC SYSTEMS

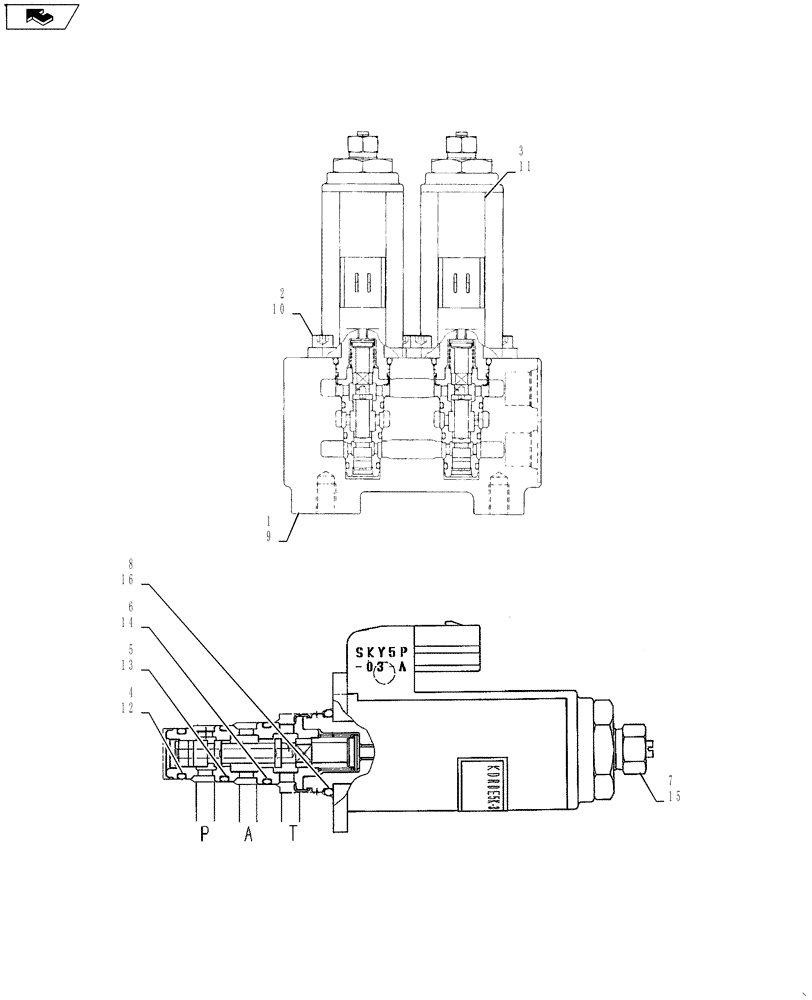

Схема запчастей Case CX55BMSR - (01-032[02]) - CONTROL LINES, VALVE (ROTARY, HAND CONTROL) (35) - HYDRAULIC SYSTEMS
12
11
10
16
2
13
7
6
15
8
3
1
9
4
5
14
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY64H00110F1

Valve (Rotary, Hand Control)

1шт.

.

PW35V00002F1

SOLENOID VALVE

Incl 1 - 3

1шт.

1

PW35V00002S101

BODY

1шт.

2

YN35V00047S171

SCREW,Hex Socket Head, M5 x 12mm

Cap

4шт.

3

PW35V00003F1

SOLENOID VALVE

(Nibbler & Breaker Open/Close, Revolution LH/RH Prop) Solenoid

2шт.

4

YN35V00004S361

O-RING

1шт.

5

YN35V00004S362

O-RING

1шт.

6

YN35V00004S363

O-RING

1шт.

7

YN35V00018S802

NUT

1шт.

8

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

1шт.

9

PW35V00002S101

BODY

1шт.

10

YN35V00047S171

SCREW,Hex Socket Head, M5 x 12mm

4шт.

11

PW35V00003F1

SOLENOID VALVE

(Nibbler & Breaker Open/Close, Revolution LH/RH Prop) Solenoid

2шт.

12

YN35V00004S361

O-RING

1шт.

13

YN35V00004S362

O-RING

1шт.

14

YN35V00004S363

O-RING

1шт.

15

YN35V00018S802

NUT

1шт.

16

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

1шт.
