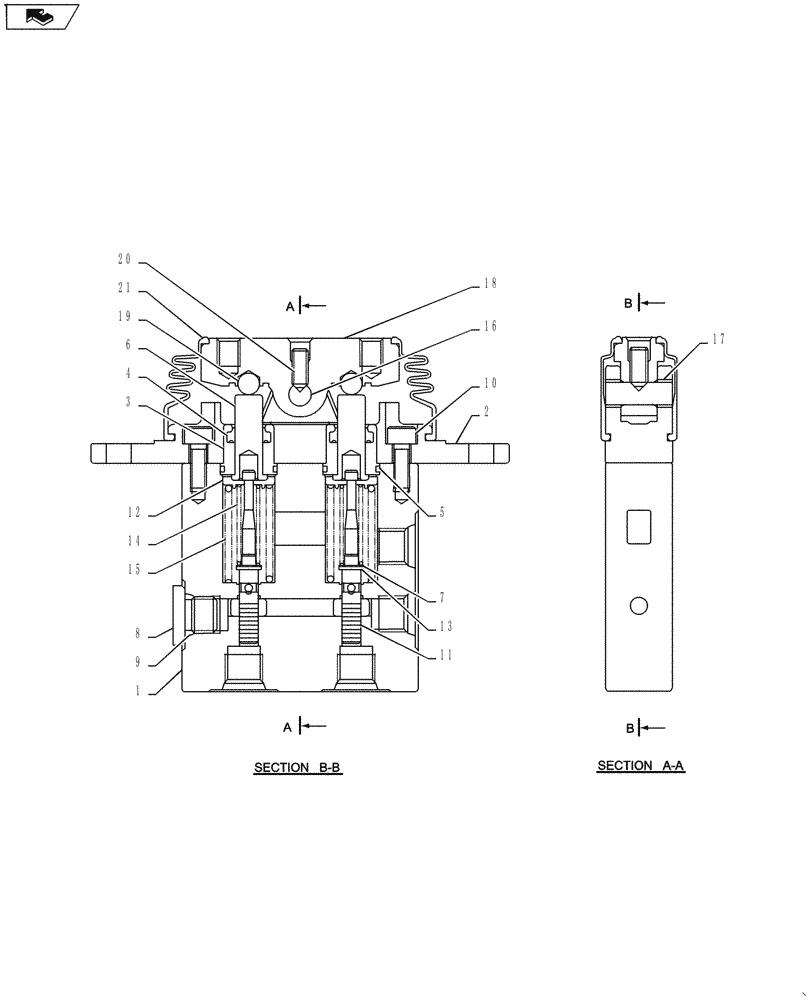

Запчасти Case CX55BMSR (01-036[02]) - CONTROL LINES, REMOTE (DOZER) (35) - HYDRAULIC SYSTEMS

.

PB30V00002F2

PILOT VALVE

Assembly, Incl 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

Case

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

PB30V00002S202

PLUG

2шт.

4

PM30V00019S210

PACKING

2шт.

5

2436U2946S9

O-RING,13.5mm ID x 20.5mm OD x 1mm Thk

2шт.

6

NSS

NOT SOLD SEPARAT

Rod, Push

2шт.

7

NSS

NOT SOLD SEPARAT

Shim

2шт.

8

YW30V00001S157

PLUG

1шт.

9

ZD12P01100

O-RING

1шт.

10

ZS23C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

2шт.

11

NSS

NOT SOLD SEPARAT

Spool

2шт.

12

NSS

NOT SOLD SEPARAT

Seat, Spring

2шт.

13

NSS

NOT SOLD SEPARAT

Washer

2шт.

14

NSS

NOT SOLD SEPARAT

Spring

2шт.

15

NSS

NOT SOLD SEPARAT

Spring

2шт.

16

NSS

NOT SOLD SEPARAT

Saft, Cam

1шт.

17

NSS

NOT SOLD SEPARAT

Bushing

2шт.

18

NSS

NOT SOLD SEPARAT

Cam

1шт.

19

NSS

NOT SOLD SEPARAT

Ball

2шт.

20

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

21

NSS

NOT SOLD SEPARAT

Boot

1шт.

PB30V00002R100

REPAIR KIT

Consists Of Item: 16(1), 18(1), 20(1), 19(2)

1шт.
