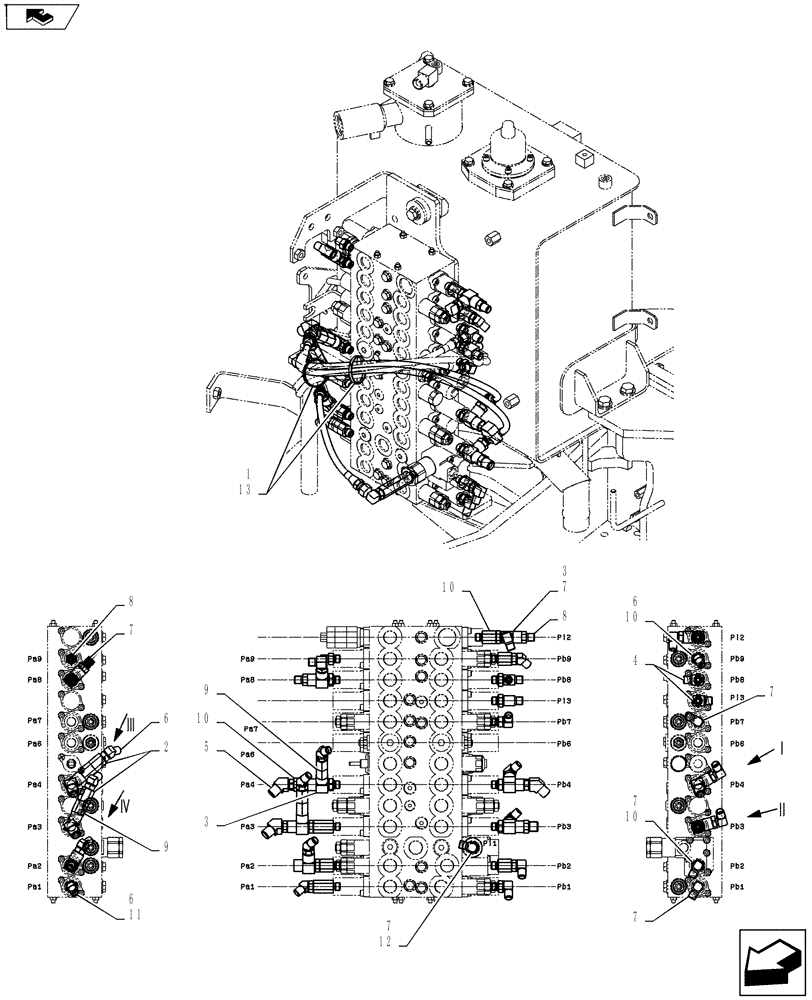

Запчасти Case CX55BMSR (01-040[01]) - CONTROL LINES, MAIN (35) - HYDRAULIC SYSTEMS

.

Main Control Lines PY06H00029F1, Start Serial: PS02-00101

1шт.

1

NSS

NOT SOLD SEPARAT

Main Control Lines PY06H00018F1

1шт.

2

YW06H01001P1

HYD CONNECTOR

2шт.

3

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

7шт.

4

HH55L04004G1

TEE

2шт.

5

HH45S06004G1

45 ELBOW

3шт.

6

HH45S04004G1

45 ELBOW

6шт.

7

HH35S04004G1

90 ELBOW

6шт.

8

HH25S04004G1

HYD CONNECTOR

3шт.

9

HH25R04004G5

HYD CONNECTOR

2шт.

10

2444Z2525

HYD CONNECTOR

5шт.

11

2444T2524D2

HYD CONNECTOR

2шт.

12

2444P1171D4

HYD CONNECTOR

1шт.

13

PY01P01043D5

CABLE TIE,301mm L

2шт.
