(01-041[03]) - CONTROL LINES, MAIN (ROTARY, NIBBLER & BREAKER)

Запчасти Case CX55BMSR (01-041[03]) - CONTROL LINES, MAIN (ROTARY, NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS

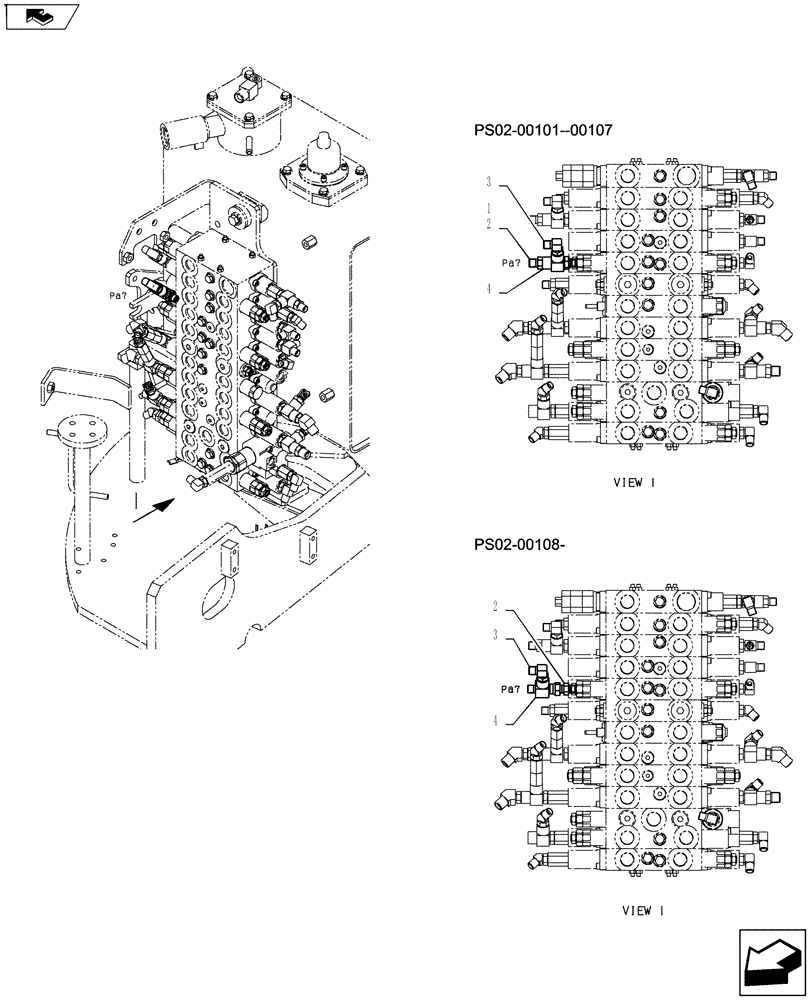

Схема запчастей Case CX55BMSR - (01-041[03]) - CONTROL LINES, MAIN (ROTARY, NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS
2
home
4
1
4
3
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Main Control Lines (Rotary, Nibbler & Breaker) PY06H00027F1, Start Serial: PS02-00101

1шт.

1

NSS

NOT SOLD SEPARAT

Main Control Lines PY06H00028F1

1шт.

2

PU64H01012D2

HYD CONNECTOR

1шт.

3

HH35S04004G1

90 ELBOW

1шт.

4

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

, Serial Range: PS02-00101-PS02-00107

1шт.

4

PF42H01027P1

TEE

, Start Serial: PS02-00108

1шт.
