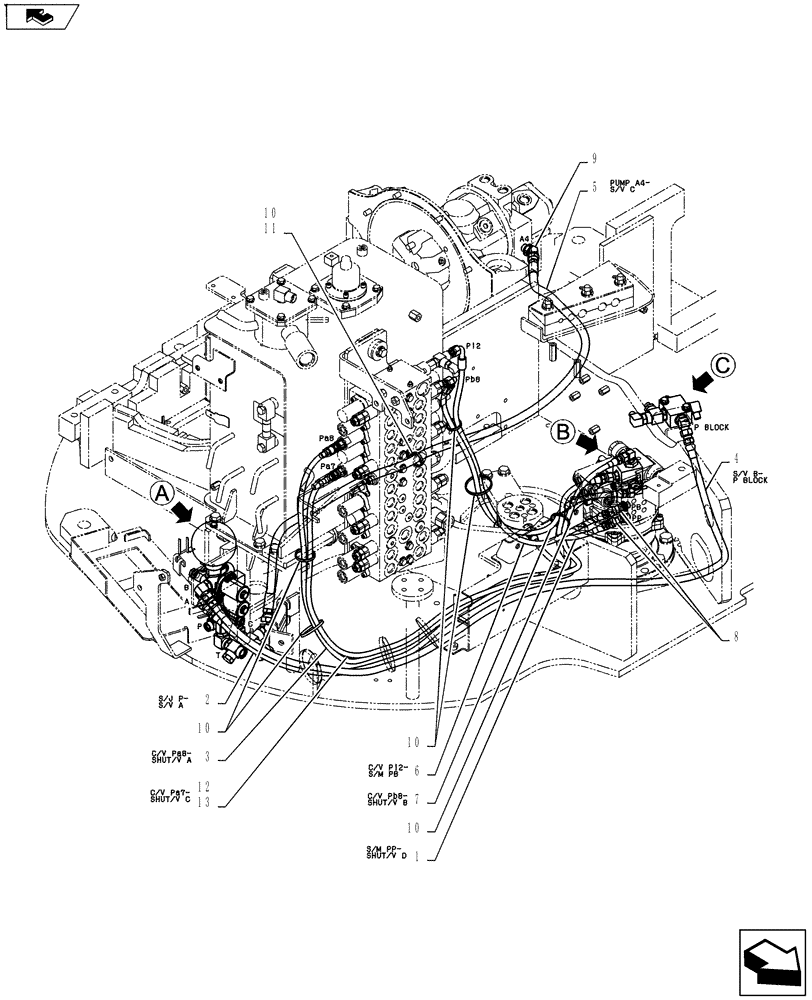

Запчасти Case CX55BMSR (01-042[01]) - CONTROL LINES, VALVE (ROTARY) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve (Rotary) PY64H00111F1

1шт.

1

HX24L04046DX

FLEXIBLE HOSE

1шт.

2

HX24L04135DX

HOSE ASSY.

1шт.

3

HX24L04170DX

HOSE,6.3mm ID x 1700mm L

1шт.

4

HX24L06175DX

HOSE

1шт.

5

HX25L06160DY

HOSE,9.5mm ID x 1600mm L

1шт.

6

HX34L04084DX

HOSE ASSY.

1шт.

7

HX34L04088DX

HOSE ASSY.

1шт.

8

HH45S04004G1

45 ELBOW

2шт.

9

HH45S06006G1

45 ELBOW

3шт.

10

YN13E01375P1

CLIP,M8 x 8.20mm Shank

1шт.

11

PY01P01043D5

CABLE TIE,301mm L

6шт.

12

NSS

NOT SOLD SEPARAT

Control Lines Valve PY64H00119F1

1шт.

13

HX24L04160DX

HOSE

1шт.
