(02-017[02]) - MOTOR INSTALL, PROPEL

Запчасти Case CX55BMSR (02-017[02]) - MOTOR INSTALL, PROPEL (35) - HYDRAULIC SYSTEMS

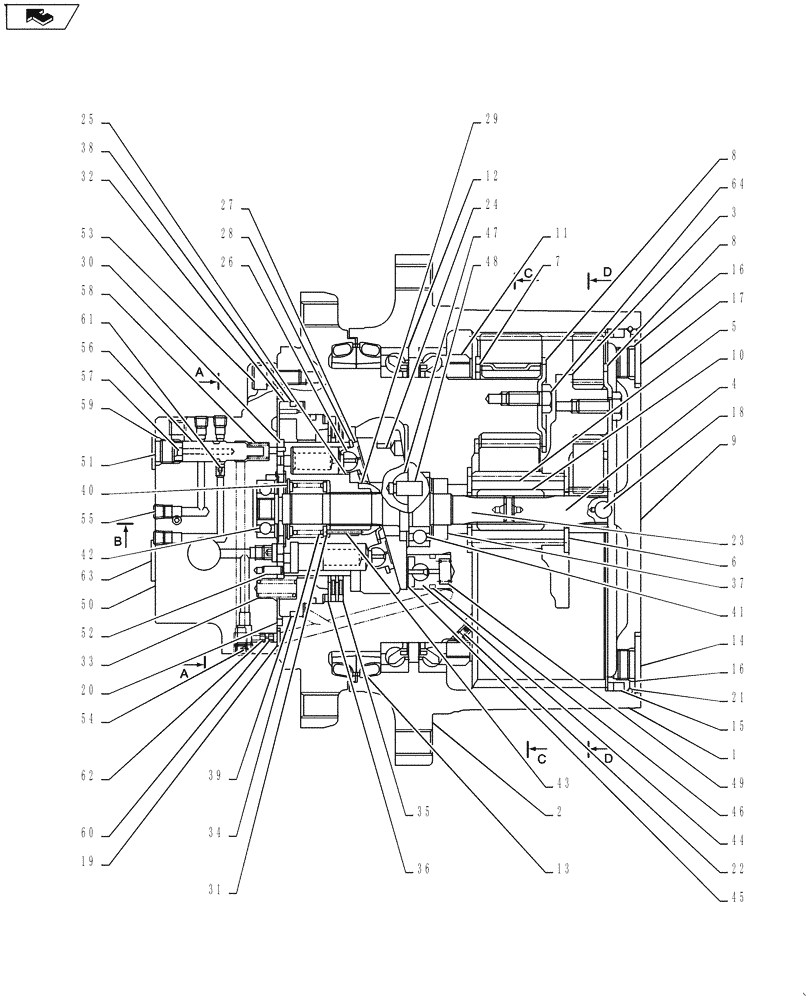

Схема запчастей Case CX55BMSR - (02-017[02]) - MOTOR INSTALL, PROPEL (35) - HYDRAULIC SYSTEMS
54
1
14
55
31
25
35
44
26
12
9
28
10
53
2
18
59
5
41
22
29
6
52
62
48
64
8
32
13
17
3
11
15
47
home
27
24
21
60
46
51
16
4
23
30
61
49
37
39
7
45
42
34
56
20
38
58
33
16
63
19
57
8
36
43
50
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY53D00004F1

Propel

1шт.

PH15V00012F1

HYDRAULIC MOTOR

Assy, Incl 1 - 64

1шт.

1

PH15V00012S001

HUB

1шт.

2

PH15V00012S002

SPINDLE

1шт.

3

PH15V00012S003

CARRIER

Holder

1шт.

4

PH15V00012S004

GEAR

Sun

1шт.

5

PH15V00012S006

GEAR

Sun

1шт.

6

PX15V00025S009

WASHER

2шт.

7

PH15V00012S011

WASHER

Thrust

4шт.

8

PX15V00025S012

WASHER

7шт.

9

PH15V00012S013

COVER

1шт.

10

PH15V00012S014

COUPLING

1шт.

11

PH15V00012S022

NUT

1шт.

12

PH15V00012S024

BALL BEARING

2шт.

13

NSS

NOT SOLD SEPARAT

Seal, Floating

2шт.

14

YT15V00008S033

PLUG

1шт.

15

ZD11G19500

O-RING,194.30mm ID x 205.70mm OD x 5.70mm

1шт.

16

ZD12P01400

O-RING

3шт.

17

YR15V00002S121

PLUG

2шт.

18

2441U815S26

BALL

1шт.

19

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

20

PH15V00009S030

O-RING

1шт.

21

PH15V00012S045

RING

1шт.

22

PX15V00025S047

SET SCREW

2шт.

23

PH15V00012S102

SHAFT

1шт.

24

PH15V00012S103

PLATE

1шт.

25

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

Piston

9шт.

27

NSS

NOT SOLD SEPARAT

Shoe

9шт.

28

2441U831S107

RETAINING PLATE

1шт.

29

2441U831S108

BALL

1шт.

30

PH15V00012S109

PLATE

1шт.

31

2441U831S110

WASHER

2шт.

32

PH15V00012S112

PISTON

1шт.

33

PH15V00009S113

SPRING

8шт.

34

YJ15V00002S114

SPRING

1шт.

35

PH15V00012S115

PLATE

2шт.

36

YJ15V00002S116

PLATE

3шт.

37

2441U831S132

OIL SEAL

1шт.

38

PY15V00005S135

O-RING

1шт.

39

PH15V00009S139

O-RING

1шт.

40

2441U831S145

RING

Retaining

1шт.

41

YJ15V00002S149

BALL BEARING

1шт.

42

2441U831S150

BALL BEARING

1шт.

43

PH15V00009S151

ROLLER

3шт.

44

NSS

NOT SOLD SEPARAT

Piston

1шт.

45

NSS

NOT SOLD SEPARAT

Shoe

1шт.

46

PH15V00012S163

SEAL

1шт.

47

PY15V00006S167

SPOOL

2шт.

48

PH15V00009S177

PIN

2шт.

49

PH15V00009S190

SPRING

1шт.

50

NSS

NOT SOLD SEPARAT

Flange

1шт.

51

2441U995S192

PLUG

2шт.

52

2441U815S141

PIN

2шт.

53

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

54

YX15V00003S146

PLUG

4шт.

55

PY15V00006S154

PLUG

6шт.

56

NSS

NOT SOLD SEPARAT

Spool

1шт.

57

NSS

NOT SOLD SEPARAT

Stopper

1шт.

58

PH15V00009S401

SPRING

1шт.

59

ZD12P01100

O-RING

2шт.

60

PH15V00009S275

ORIFICE

5шт.

61

PH15V00009S276

ORIFICE

1шт.

62

YN15V00027S379

FILTER

1шт.

63

2441U829S199

PLATE

Name

1шт.

64

YA15V00004S040

SCREW

7шт.

PH15V00012R390

REPAIR KIT

Consists Of Item: 13(2)

1шт.

PH15V00012R310

REPAIR KIT

Consists Of Item: 25(1), 26(9), 27(9)

1шт.

PH15V00012R320

REPAIR KIT

Consists Of Item: 46(1)

1шт.

PH15V00012R330

VALVE

Repair Kit, Consists Of Item: 50(1), 56(1), 57(1), 58(1), 61(1), 62(1), 63(1), 51(2), 59(2), 54(4), 60(5), 55(6)

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Item: 56(1), 57(1)

1шт.

PH15V00012R360

REPAIR KIT

Consists Of Item: 20(1), 37(1), 38(1), 39(1), 13(2), 19(2), 16(3)

1шт.
