(01-049[03]) - CONTROLS, OPERATORS

Запчасти Case CX55BMSR (01-049[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

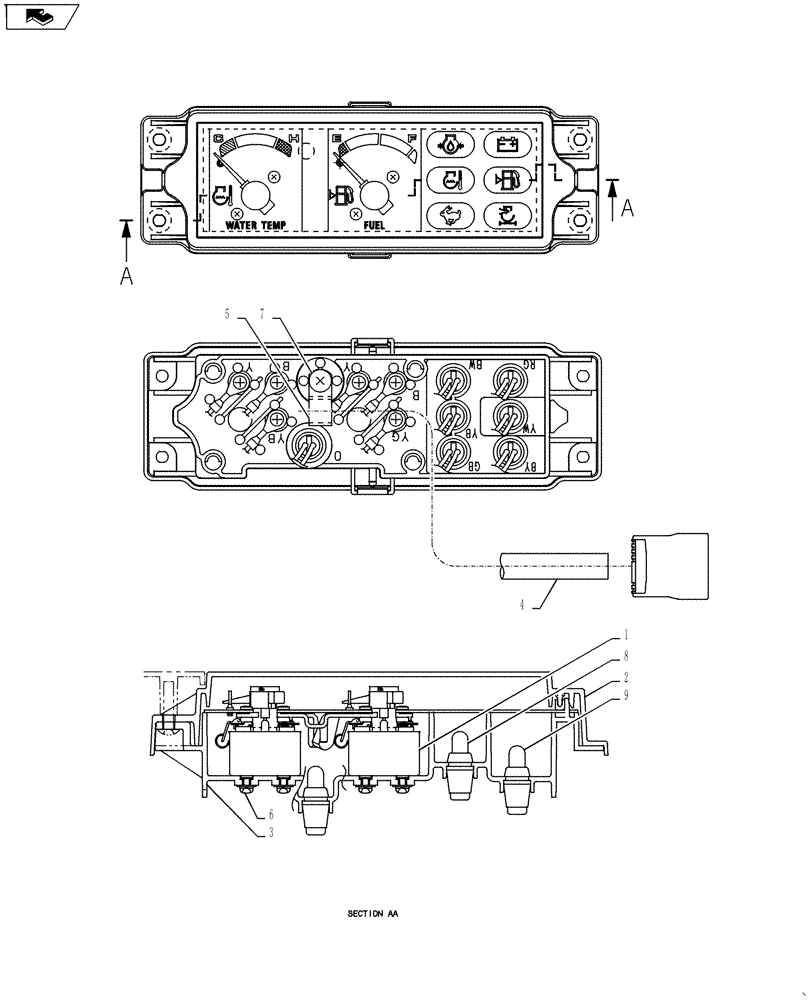

Схема запчастей Case CX55BMSR - (01-049[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
2
9
1
3
5
home
7
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Operators Controls PY03M00021F1

1шт.

1

PH59S00005S001

GAUGE ASSY.

1шт.

2

PH59S00005S002

GLASS

1шт.

3

PH59S00005S003

CASE

1шт.

4

PH59S00005S004

HARNESS

1шт.

5

PH59S00005S005

CLIP

1шт.

6

PH59S00005S006

SCREW

Machine

6шт.

7

PH59S00005S007

SCREW

Machine

1шт.

8

PH59S00005S008

LAMP

6шт.

9

PH59S00005S009

LAMP

1шт.

Выбрано товаров: 10
