(35.735.020) - HYDRAULIC CYLINDER, EXTENSION, LINES

Запчасти Case CX17C (35.735.020) - HYDRAULIC CYLINDER, EXTENSION, LINES (35) - HYDRAULIC SYSTEMS

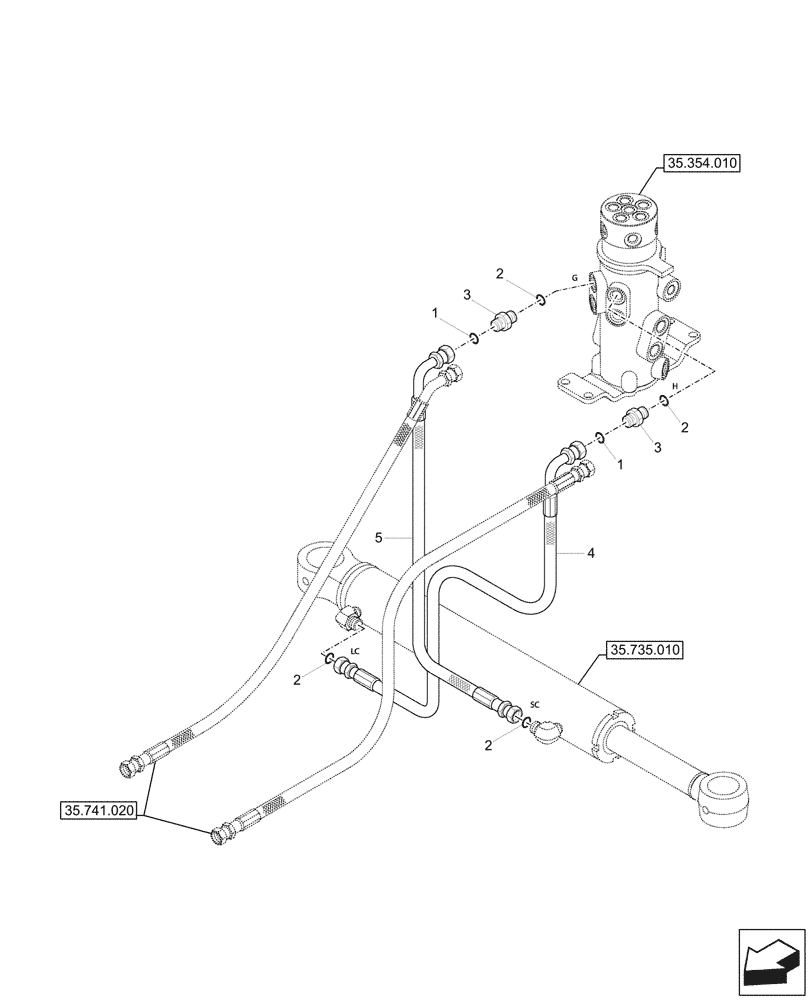

Схема запчастей Case CX17C - (35.735.020) - HYDRAULIC CYLINDER, EXTENSION, LINES (35) - HYDRAULIC SYSTEMS
35.741.020
1
4
1
2
2
3
5
2
2
3
35.354.010
35.735.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

S631-011004

O-RING,PF 1/4

2шт.

2

S621-011001

O-RING,9/16 - 18 UNF

4шт.

3

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

2шт.

4

P933-045012

HYDRAULIC HOSE

1шт.

5

P933-045008

HYDRAULIC HOSE

1шт.
