/ / / / / / / / (35.353.020[01]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - END SN NZLN51057

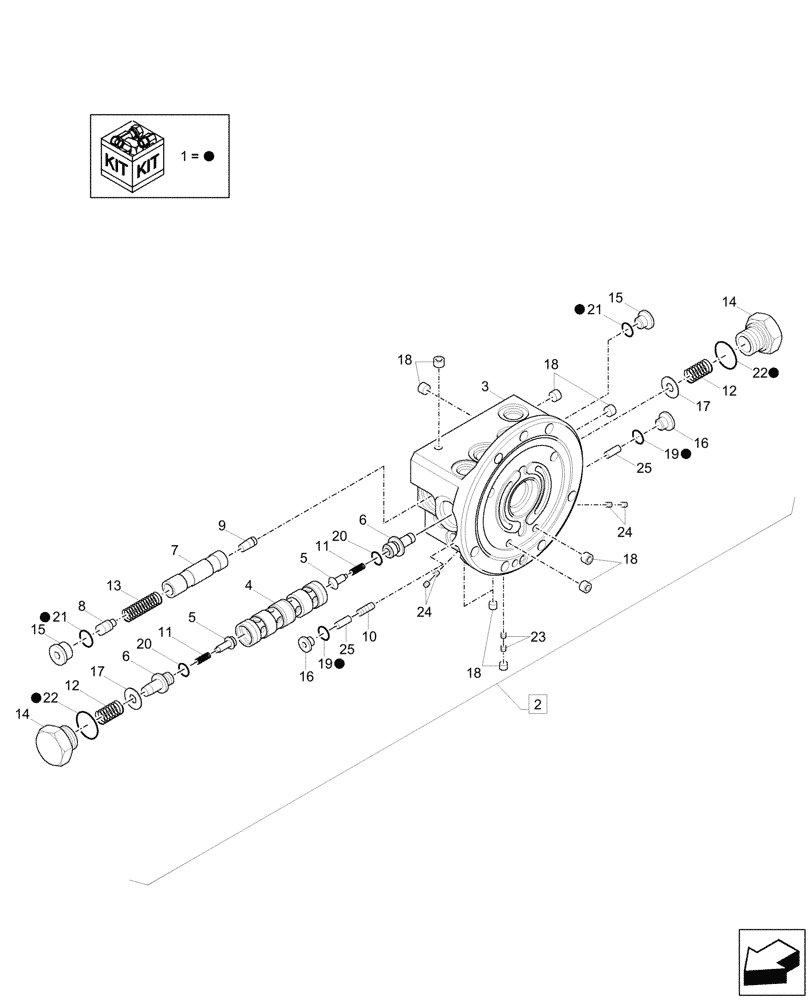

Запчасти Case CX17C (35.353.020[01]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - END SN NZLN51057 (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX17C - (35.353.020[01]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS - END SN NZLN51057 (35) - HYDRAULIC SYSTEMS](https://www.partsell.ru/storage/images/casece/5492945.png)
24
4
20
18
3
21
1
10
17
21
8
5
9
18
17
24
22
12
25
6
25
19
23
11
15
16
16
13
1
14
1
6
11
19
1
20
5
18
1
22
1
14
15
12
2
18
7
1
1
1
XJDK-00208
SEAL KIT
ASSY, Incl 19, 21, 22
1шт.
See Also Figure 35.353.030 (01)
1шт.
2
XJDK-00206
BODY
ASSY, Incl 3 - 25
1шт.
See Also Figure 35.353.030 (01)
1шт.
3
NSS
NOT SOLD SEPARAT
Body, Incl in 2
1шт.
4
NSS
NOT SOLD SEPARAT
Spool, Incl in 2
1шт.
5
NSS
NOT SOLD SEPARAT
Valve, Incl in 2
2шт.
6
NSS
NOT SOLD SEPARAT
Guide, incl in 2
2шт.
7
NSS
NOT SOLD SEPARAT
Spool, Incl in 2
1шт.
8
NSS
NOT SOLD SEPARAT
Spool B, Incl in 2
1шт.
9
NSS
NOT SOLD SEPARAT
Spool C, Incl in 2
1шт.
10
NSS
NOT SOLD SEPARAT
Spool Incl in 2
1шт.
11
NSS
NOT SOLD SEPARAT
Spring V1, Incl in 2
2шт.
12
NSS
NOT SOLD SEPARAT
Spring V2, Incl in 2
2шт.
13
NSS
NOT SOLD SEPARAT
Spring V3, Incl in 2
1шт.
14
NSS
NOT SOLD SEPARAT
Plug, Incl in 2
2шт.
15
NSS
NOT SOLD SEPARAT
Plug, Incl in 2
2шт.
16
NSS
NOT SOLD SEPARAT
Plug, Incl in 2
2шт.
17
NSS
NOT SOLD SEPARAT
Plug, Incl in 2
2шт.
18
NSS
NOT SOLD SEPARAT
Plug, Incl in 2
15шт.
19
XJDK-00048
O-RING
2шт.
20
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 2
2шт.
21
XJDK-00020
O-RING
2шт.
22
XJDK-00030
O-RING
2шт.
23
NSS
NOT SOLD SEPARAT
Choke, Incl in 2
2шт.
24
NSS
NOT SOLD SEPARAT
Choke, Incl in 2
4шт.
25
NSS
NOT SOLD SEPARAT
Pin, Incl in 2
2шт.
