(35.357.050) - VAR - 747076 - PILOT CONTROLS, BOOM SWING, AUXILIARY CIRCUIT

Запчасти Case CX57C (35.357.050) - VAR - 747076 - PILOT CONTROLS, BOOM SWING, AUXILIARY CIRCUIT (35) - HYDRAULIC SYSTEMS

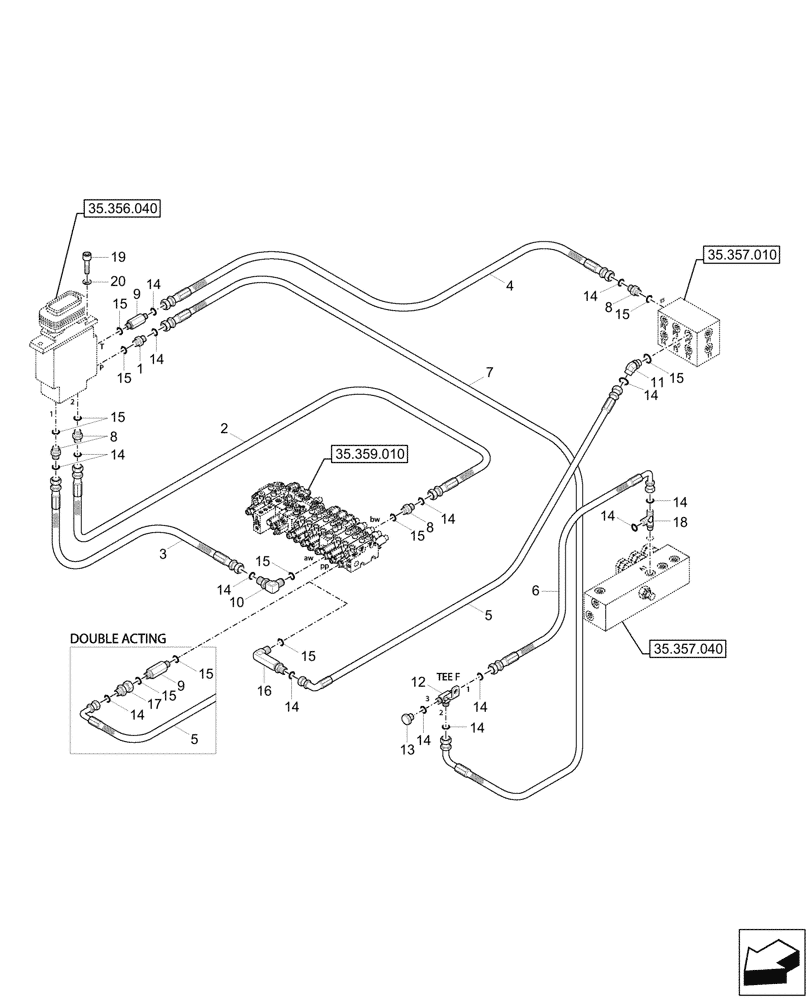

Схема запчастей Case CX57C - (35.357.050) - VAR - 747076 - PILOT CONTROLS, BOOM SWING, AUXILIARY CIRCUIT (35) - HYDRAULIC SYSTEMS
35.359.010
16
18
9
14
15
20
15
14
15
14
10
14
14
14
5
14
14
12
8
6
2
14
3
14
15
15
14
9
14
5
15
15
14
15
19
1
7
4
15
14
13
11
15
17
8
8
35.356.040
35.357.040
35.357.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

31N6-25060

HYD CONNECTOR,Connector, PF 1/4 x 9/16 - 18 UNF

1шт.

2

P910-042034

HOSE

1шт.

3

P910-042044

HYDRAULIC HOSE

1шт.

4

P910-042020

HYDRAULIC HOSE

1шт.

5

P930-042030

HYDRAULIC HOSE

1шт.

6

P930-042012

HOSE

1шт.

7

P930-042028

HYDRAULIC HOSE

1шт.

8

X500-110001

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

4шт.

9

X511-104513

HYD CONNECTOR,PF 1/4 x 9/16 - 18 UNF

Long

1шт.

10

X520-110001

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

11

X530-110001

45 ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

12

31M8-20210

TEE

1шт.

13

X710-100102

CAP

1шт.

Without Quick Coupler, Var. 747065

1шт.

14

S621-011001

O-RING,9/16 - 18 UNF

14шт.

15

S631-011004

O-RING,PF 1/4

10шт.

16

31N6-25110

ELBOW,PF 1/4 x 9/16 - 18 UNF

1шт.

17

31E9-22120

HYD CONNECTOR,PF 1/4 x PF 1/4

1шт.

Auxiliary Hydraulic Circuit, Pedal, Var. 747123

1шт.

18

X840-515151

TEE,9/16 - 18 UNF

Swivel

1шт.

19

S109-080206

BOLT

2шт.

20

S411-080006

WASHER

2шт.
