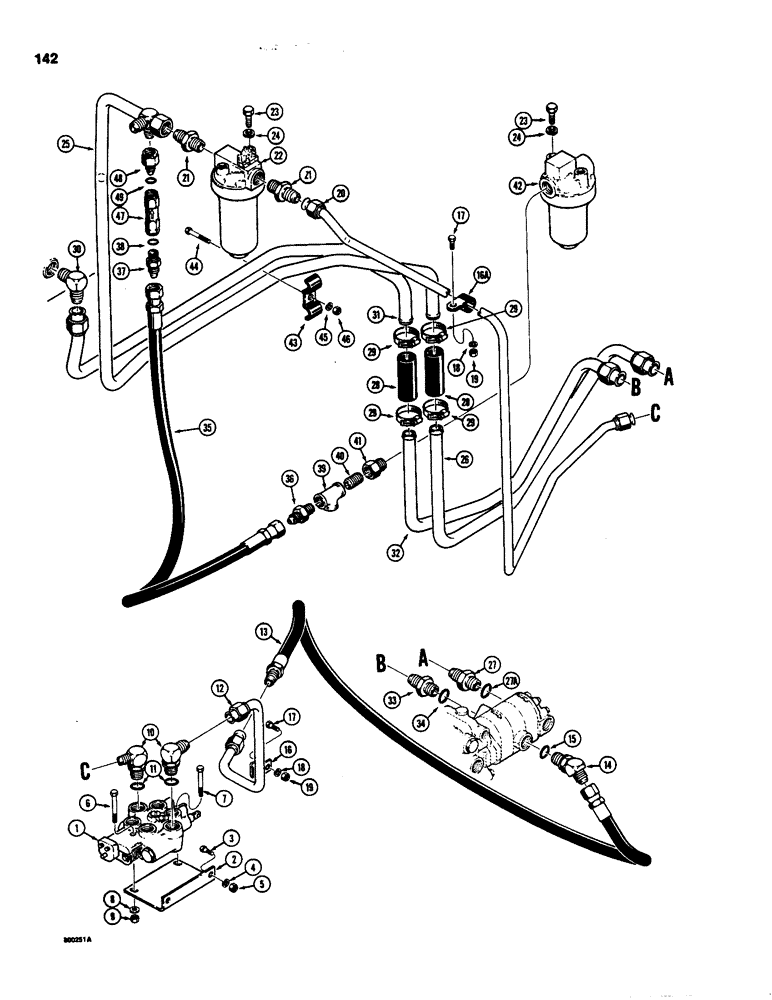

Запчасти Case 1835 (142) - LOADER CONTROL VALVE AND HYDRAULIC FILTER CIRCUIT (08) - HYDRAULICS

1

D73353

VALVE

loader control, see Fig. 144

1шт.

2

D60089

BRACKET

loader control, valve

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

2шт.

6

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

7

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

8

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

9

131-651

NUT,5/16"-18, GB

NUT hex, self-locking, 5/16 inch - 18 NC

2шт.

10

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

adjustable, 90 degree

2шт.

12

D83969

HYD TUBE,0.75" OD x 7, 10.18" L

TUBE hydraulic, valve inlet

1шт.

13

D61392

HOSE

hydraulic, pump to valve19 inch (483 mm) long

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

dual pump, 45 degree

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Elbow

1шт.

16

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

tube

1шт.

16a

49855

CLAMP

tube

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

2шт.

20

D90173

TUBE hydraulic, valve to equipment filter 0.75" OD

1шт.

21

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER male, straight, equipment filter

2шт.

22

D64076

FILTER

equipment, see Fig. 146

1шт.

23

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

D90163

HYD TUBE,1" OD x 27.26, 31.76" L

TUBE hydraulic, equipment filter to charge pump

1шт.

26

D90159

HYD TUBE,1" OD

TUBE hydraulic, tube to charge pump

1шт.

27

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, dual pump inlet

1шт.

27a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

adapter

1шт.

28

R12351

LARGE HOSE

HOSE tube to tube, 4 inch (102 mm) long

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

4шт.

30

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

left-hand, tank, 90 degree

1шт.

31

D90165

HYD TUBE,1" OD x 31.73, 7.3" L

TUBE hydraulic, left-hand, tank to pump

1шт.

32

D90161

HYD TUBE,1" OD x 8.44, 18.94" L

TUBE hydraulic, tube to charge pump

1шт.

33

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter male, straight, dual pump

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

35

D92019

HOSE ASSY.

HOSE filter to filter, 34 inch (850 mm) long

1шт.

36

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, male

1шт.

37

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, to check valve 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Adapter

1шт.

39

221-424

TEE,1/2" NPT

FITTING pipe, tee, filter inlet

1шт.

40

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE tee to reducing bushing

1шт.

41

221-60

TUBE

BUSHING reducing, charge filter

1шт.

42

D69097

FILTER

charge, see Fig. 146

1шт.

43

R15257

CLAMP

tube

1шт.

44

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

25-106

NUT,3/8"-16, G5

hex, 3/8 inch - 16 NC

1шт.

47

D92006

VALVE

check, hydraulic, Serial Range: flow-filter

1шт.

48

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

check valve to tube

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

49

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, reducer

1шт.
