(06-10) - PUMP, TANDEM MOUNTING

Запчасти Case 85XT (06-10) - PUMP, TANDEM MOUNTING (06) - POWER TRAIN

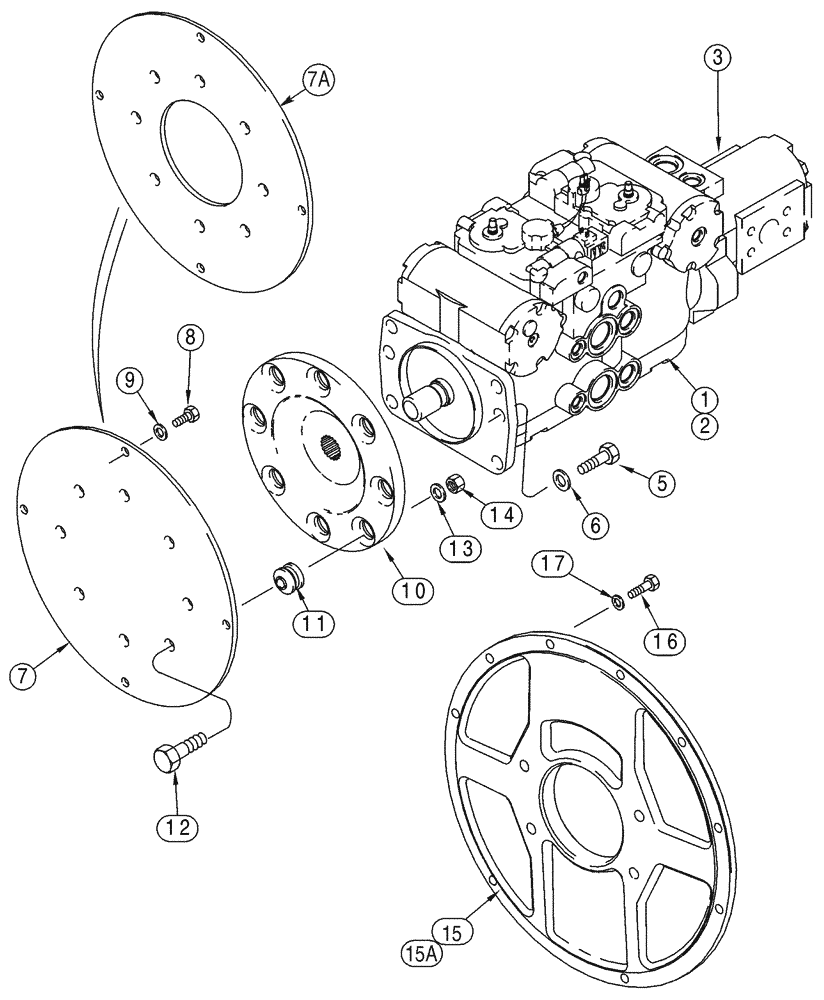

Схема запчастей Case 85XT - (06-10) - PUMP, TANDEM MOUNTING (06) - POWER TRAIN
17
15a
2
16
7
15
7a
1
9
12
8
6
13
10
11
14
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

259625A2

PUMP

Vendor Part Number M51-4525258, Includes: Ref. 3, Also Includes 6-17 - 6-31, No Longer Available, Order 433902A1, Also Order 372446A1, see Figure 06-02

1шт.

2

320271A1

PUMP

Vendor Part Number M51-4525261, Includes: Ref. 3, Also Includes 6-17 - 6-31, No Longer Available, Order 433902A1, Also Order 372446A1, see Figure 06-02

1шт.

2

357005A1

PUMP

Vendor Part Number M51-4525271, Includes: Ref. 3, Also Includes 6-17 - 6-31, No Longer Available, Order 433902A1

1шт.

2

433902A1

PUMP

Vendor Part Number M51-4525012, Includes: Ref. 3, Also Includes 6-17 - 6-31

1шт.

2

87297988

REMAN-HYD PUMP

Remanufactured PUMP - N.A. Only

1шт.

2

87297989

CORE-HYDRAULIC PUMP

Return No, PUMP - N.A. Only

1шт.

3

291162A2

PUMP

40 cc, See Figure 06-17, Replaces: 291162A1

1шт.

Part of pump P/N 259625A2

1шт.

Part of pump P/N 320271A1

1шт.

Part of pump P/N 357005A1

1шт.

Part of pump P/N 433902A1

1шт.

291162A2R

REMAN-HYD PUMP

85XT

1шт.

291162A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Use Loctite No. 242

4шт.

B17577

LOCTITE

No. 242, 6 ml, Blue

1шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

7

H438922

LARGE PLATE

PLATE, LARGE No Longer Available, Order 404801A1, Ref. 7A

1шт.

7a

404801A1

LARGE PLATE

PLATE, LARGE

1шт.

8

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

10

H436270

SPLINED COUPLING,19T, Drive, 8 Hole

Drive Coupler

1шт.

11

278365A1

BUSHING,11.5mm ID x 31.75mm OD x 26.9mm L

8шт.

12

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

13

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

8шт.

14

232-4117

LOCK NUT,7/16"-14, GC

8шт.

15

275087A3

SUPPORT

Six-Hole Pattern, No Longer Used, Order 275087A4, Ref. 15A

1шт.

15a

275087A4

SUPPORT

Nine-Hole Pattern

1шт.

16

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

6-9шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6-9шт.
