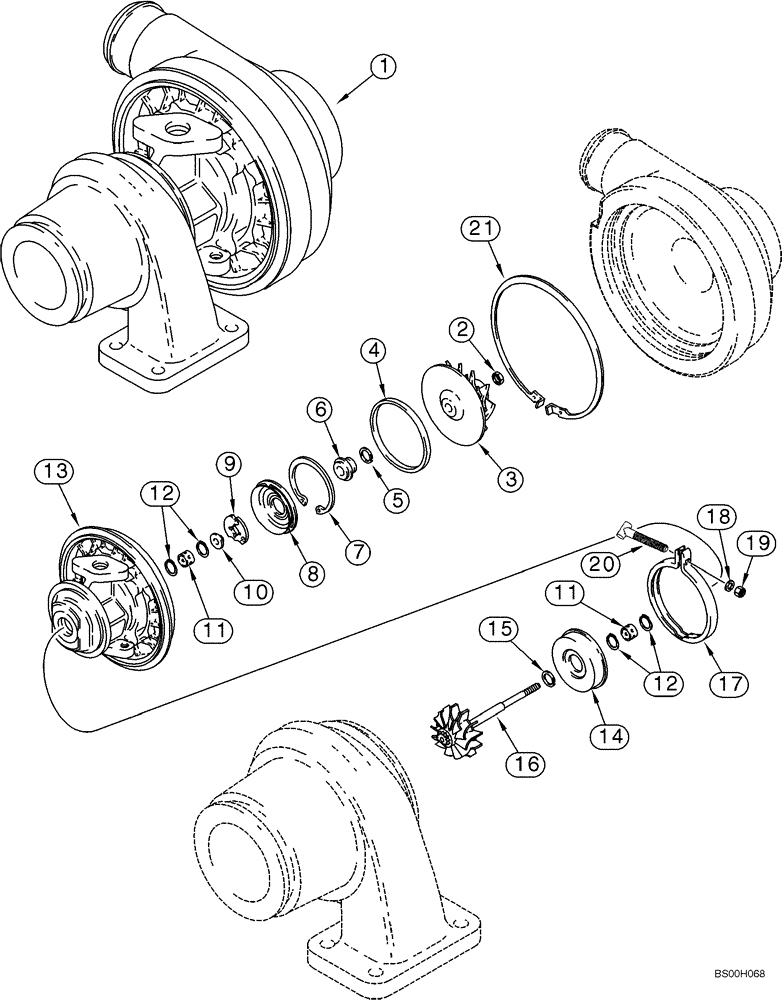

Запчасти Case 90XT (02-09D) - TURBOCHARGER ASSY, NORTH AMERICAN MODELS WITH AIR CONDITIONING AND ALL EUROPEAN MODELS (02) - ENGINE

.

REF

INSTRUCTION

4T-390 EMISSIONS CERTIFIED ENGINE

1шт.

J802908

TURBOCHARGER

Incl. J519807, J709861 Gaskets; Service With J937706, J919369 Gaskets Shown On Figure 02-09A; Incl. 1 - 21

1шт.

JR802908

REMAN-TURBOCHARGER

Remanufactured

1шт.

JC537886

CORE-TURBOCHARGER

Return Part Number

1шт.

JC592109

TURBOCHARGER

Return Number

1шт.

1

J580919

HOUSING

Incl. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Ball

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor Assy

1шт.

16a

838-5312

LOCK PIN,M3 x 12, Slotted

Not Illustrated

2шт.

17

J590606

CLAMP BRACKET,103mm

1шт.

18

J535971

WASHER

1шт.

19

87673638

FLANGE NUT

Replaces J531582

1шт.

20

J590296

BOLT

M6 x 1

1шт.

21

J535800

RING, SNAP

RING SNAP

1шт.

J575205

PACKAGE, REPAIR

Overhaul; Incl. 2, 5, 7, 8, 9, 11, 12, 15, 15A, 19, 20

1шт.
