(02-08) - AIR CLEANER ASSEMBLY

Запчасти Case 689G (02-08) - AIR CLEANER ASSEMBLY (02) - ENGINE

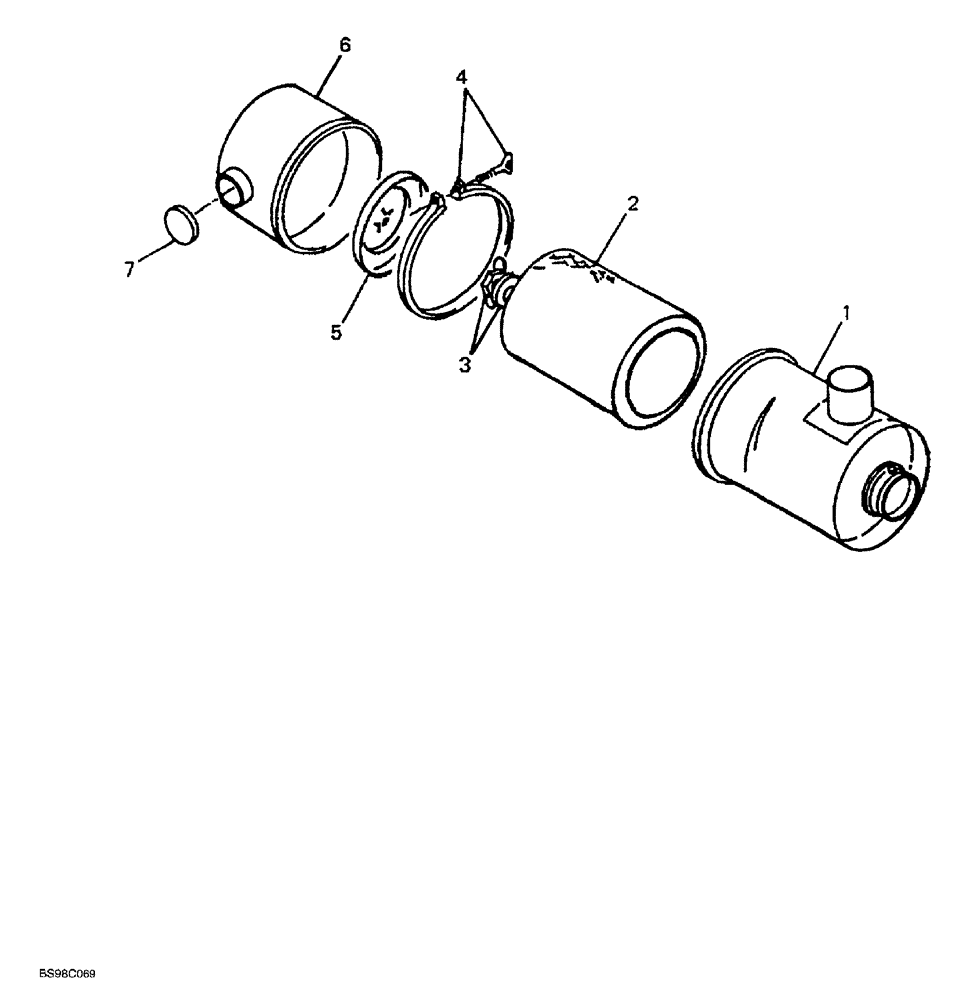

Схема запчастей Case 689G - (02-08) - AIR CLEANER ASSEMBLY (02) - ENGINE
1
7
6
5
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

310068A1

AIR CLEANER

ASSEMBLY, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

2

D56453

AIR CLEANER

ELEMENT primary

1шт.

3

309159A1

WING NUT

wing, element retaining, includes gasket

1шт.

4

309160A1

CLAMP

cover retaining

1шт.

5

309161A1

BAFFLE

element

1шт.

6

309162A1

CUP

COVER end, air cleaner

1шт.

7

309163A1

CAP

end cover

1шт.
