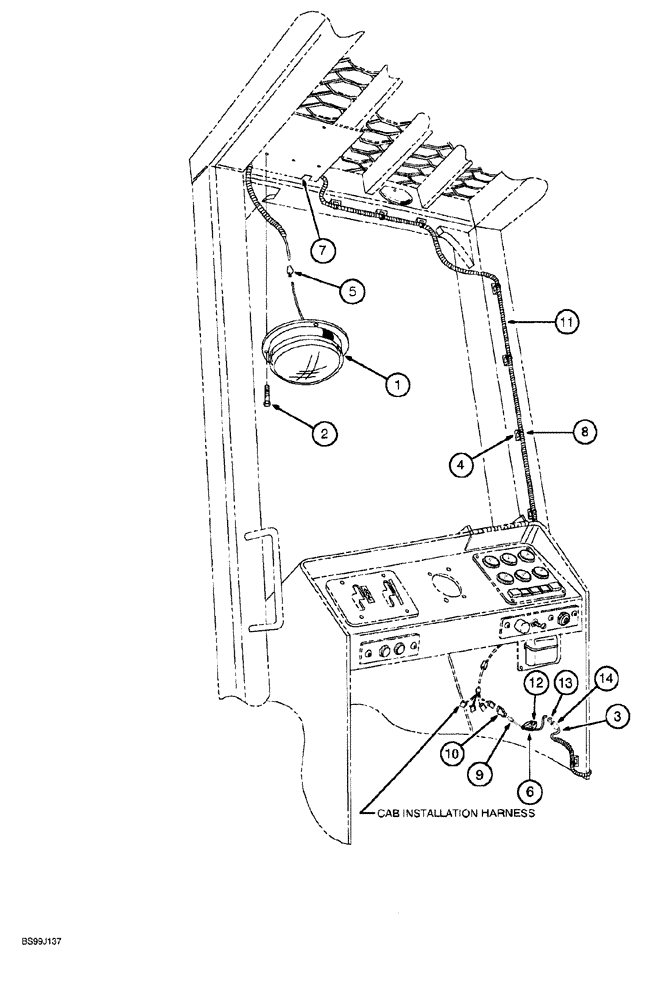

Запчасти Case 689G (04-40) - OPTIONAL CAB DOME LAMP (09) - CHASSIS

1

310162A1

INTERIOR LIGHT

dome

1шт.

2

276-2434

SELF-TAP SCREW,Hex Hd, #6 x 1/4"

self tapping, hex head, No. 6 NC x 1/4 inch

3шт.

3

310160A1

ELECTRICAL WIRE

WIRE electrical

1шт.

4

310040A1

ADHESIVE

BLOCK mounting

5шт.

5

310301A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

6

310304A1

AXLE PIN

HOLDER fuse

1шт.

7

310161A1

PLATE

support, dome lamp

1шт.

8

356720A1

STRAP

tie

5шт.

9

309908A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

10

309907A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

11

REF

INSTRUCTION

CONDUIT wire

1шт.

12

310402A1

FUSE

5 amp

1шт.

13

REF

INSTRUCTION

CLIP wire

1шт.

14

REF

INSTRUCTION

TUBE shrink, wire

1шт.
