(09-10) - OPERATORS SEAT

Запчасти Case 689G (09-10) - OPERATORS SEAT (09) - CHASSIS

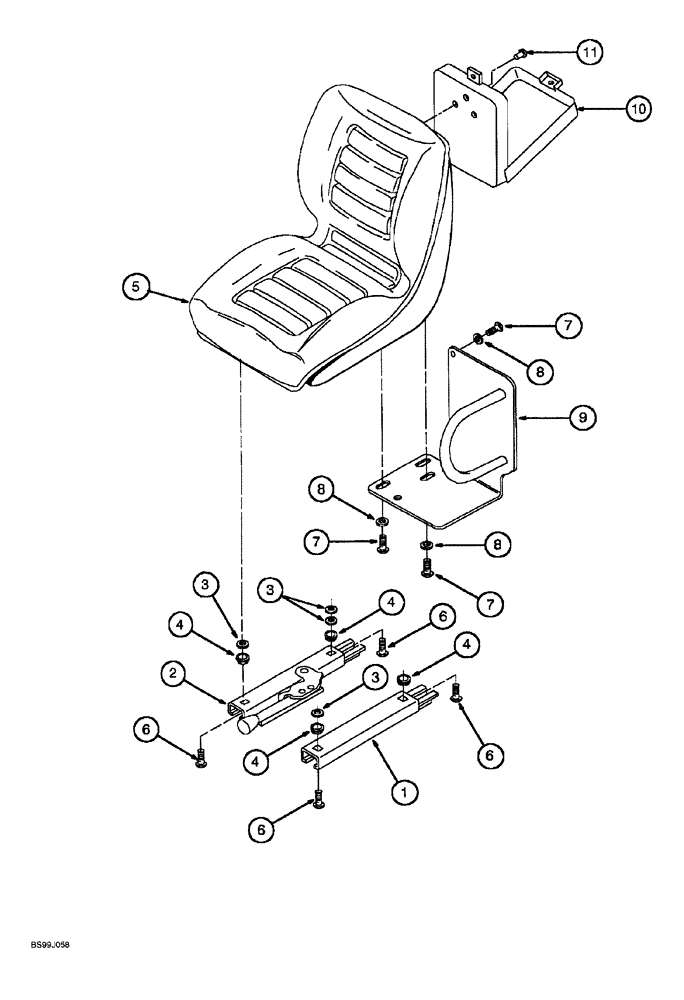

Схема запчастей Case 689G - (09-10) - OPERATORS SEAT (09) - CHASSIS
4
8
7
7
3
3
2
6
3
7
8
6
6
4
1
4
11
9
6
5
4
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

310365A1

RAIL

slide, seat, left-hand side

1шт.

2

310383A1

RAIL

adjuster, seat, right-hand side

1шт.

3

310344A1

WASHER

rail mounting

4шт.

4

310361A1

SPACER

seat rail mounting

4шт.

5

320184A1

SEAT

operators

1шт.

6

310366A1

BOLT

Ferry head, rail mounting

4шт.

7

310393A1

BOLT

hex socket, 5/16 NC x 5/8 inch

4шт.

8

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

9

309852A1

ARMREST

seat

1шт.

10

259837A1

CASE

BOX manual, Includes: Ref. 10A and 10B

1шт.

10a

905-6010

BOLT,Hex Flg, M6 x 10mm

hex serrated flange, 6-1.0 x 10 mm, not shown, if used

4шт.

10b

825-5146

SERRATED NUT,M6, Flg Ser

Not shown, if used

4шт.

11

310247A1

RIVET

box mounting, if used

4шт.
