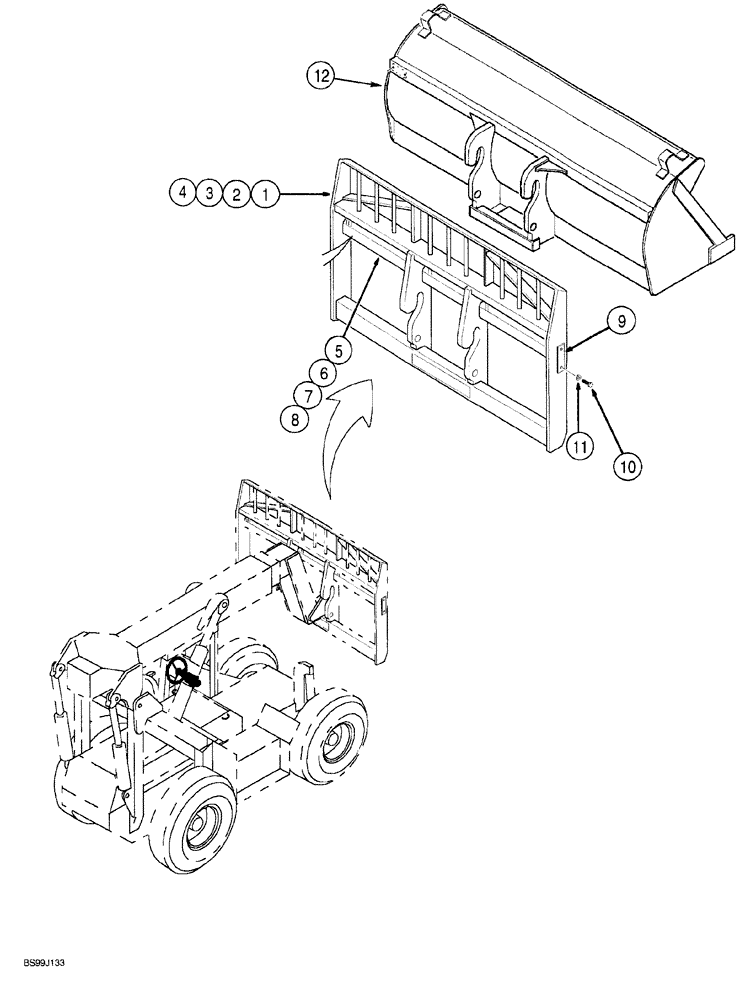

Запчасти Case 689G (09-38) - QUICK ATTACH CARRIAGE & BUCKET,(48" CARR.,48" W/ SIDE TILT,60" CARR., 72" CARR., 1.3 CUBIC YD BUCKET (09) - CHASSIS

1

309360A1

FRAME

carriage, quick attach, 1219 mm (48 inch) wide

1шт.

5

309226A1

ARM

carriage, 1219 mm (48 inch) wide

1шт.

9

310107A1

PLATE

carriage

2шт.

10

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

2

309267A1

SUPPORT ASSY.

FRAME carriage, quick attach, with side tilt, 1219 mm (48 inch) wide

1шт.

6

309342A1

PIN

ARM carriage, 1219 mm (48 inch) wide with side tilt

1шт.

9

310107A1

PLATE

carriage, with side tilt

2шт.

10

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

With side tilt

4шт.

11

492-11038

LOCK WASHER,3/8"

with side tilt

4шт.

3

309359A1

FRAME

carriage, quick attach, 1524 mm (60 inch) wide, quick attach carriage

1шт.

7

309225A1

ARM

carriage, 1524 mm (60 inch) wide, quick attach carriage

1шт.

9

310107A1

PLATE

carriage, 1524mm (60") quick attach carriage

2шт.

10

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1524mm (60"), Quick attach carriage

4шт.

11

492-11038

LOCK WASHER,3/8"

1524 mm (60") quick attach carriage

4шт.

4

309353A1

FRAME

carriage, quick attach 1829 mm (72 inch) wide quick attach carriage

1шт.

8

309224A1

ARM

carriage, 1829 mm (72 inch) wide, quick attach carriage

1шт.

9

310107A1

PLATE

carriage, 1829mm (72") quick attach carriage

2шт.

10

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1829mm (72"), Quick attach carriage

4шт.

11

492-11038

LOCK WASHER,3/8"

1829 mm (72") quick attach carriage

4шт.

12

309339A1

BUCKET

quick attach, 1 cu meter (1.3 cu yd), 1 cubic meter (1.3 cubic yard) quick attach bucket

1шт.
