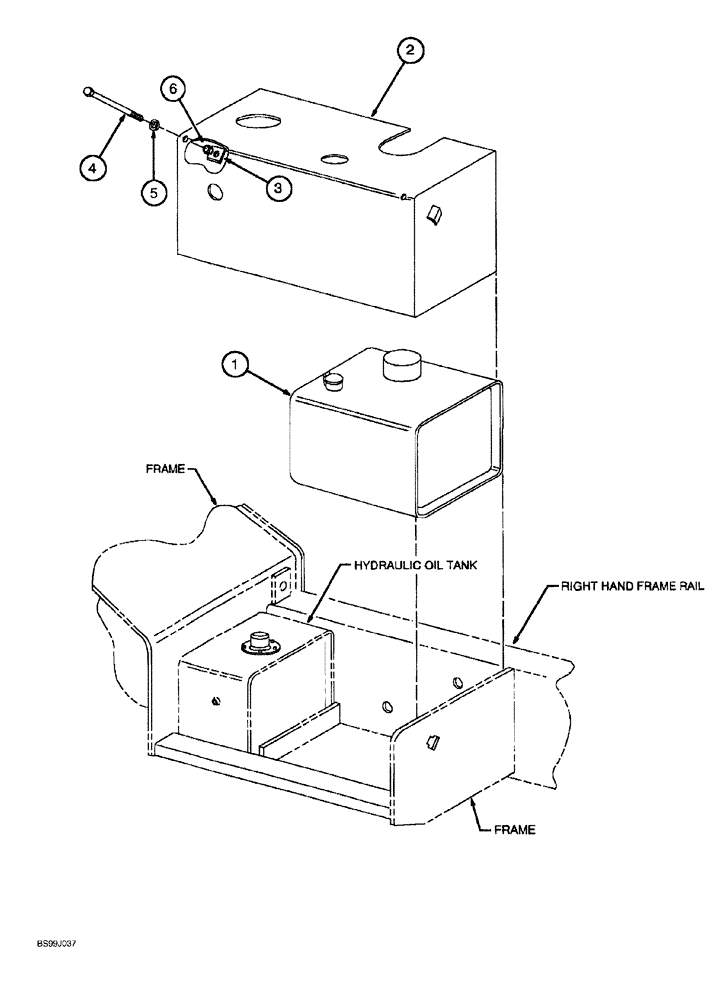

Запчасти Case 689G (03-03A) - FUEL TANK AND MOUNTING (03) - FUEL SYSTEM

1

309356A1

FUEL TANK

ASSEMBLY, diesel fuel, Includes: Ref. 1A, 1B and 1C

1шт.

1a

339087A1

SENDER UNIT

SENDER fuel level

1шт.

1b

339088A1

CAP

fuel tank

1шт.

1c

339089A1

PLUG

drain

1шт.

2

310150A1

PLATE

tank mounting

1шт.

3

310266A1

PLATE

BRACKET mounting

2шт.

4

310388A1

BOLT

hex

2шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

2шт.

6

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.
