(03-20) - FUEL FILTER LINE

Запчасти Case 689G (03-20) - FUEL FILTER LINE (03) - FUEL SYSTEM

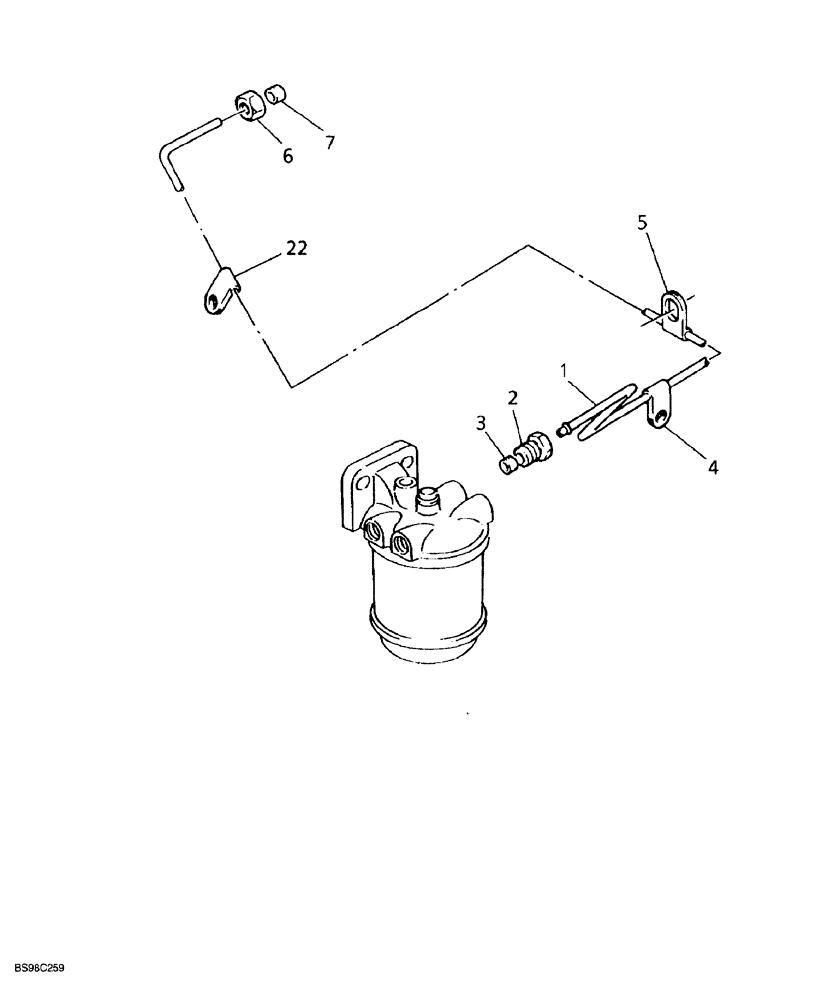

Схема запчастей Case 689G - (03-20) - FUEL FILTER LINE (03) - FUEL SYSTEM
1
5
22
6
2
3
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

314866A1

HEATER TUBE

fuel line, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE fuel line

1шт.

2

218513A1

NUT

FITTING straight, tube compression

1шт.

3

218514A1

RUBBER SEAL

SLEEVE compression

1шт.

4

315960A1

CLAMP

tube

1шт.

5

315961A1

CLIP,ELECTRICAL

tube

1шт.

6

218345A1

NUT

hex, compression

1шт.

7

218344A1

SEAL

SLEEVE compression

1шт.

22

REF

INSTRUCTION

CLAMP tube, not used in this application

1шт.
