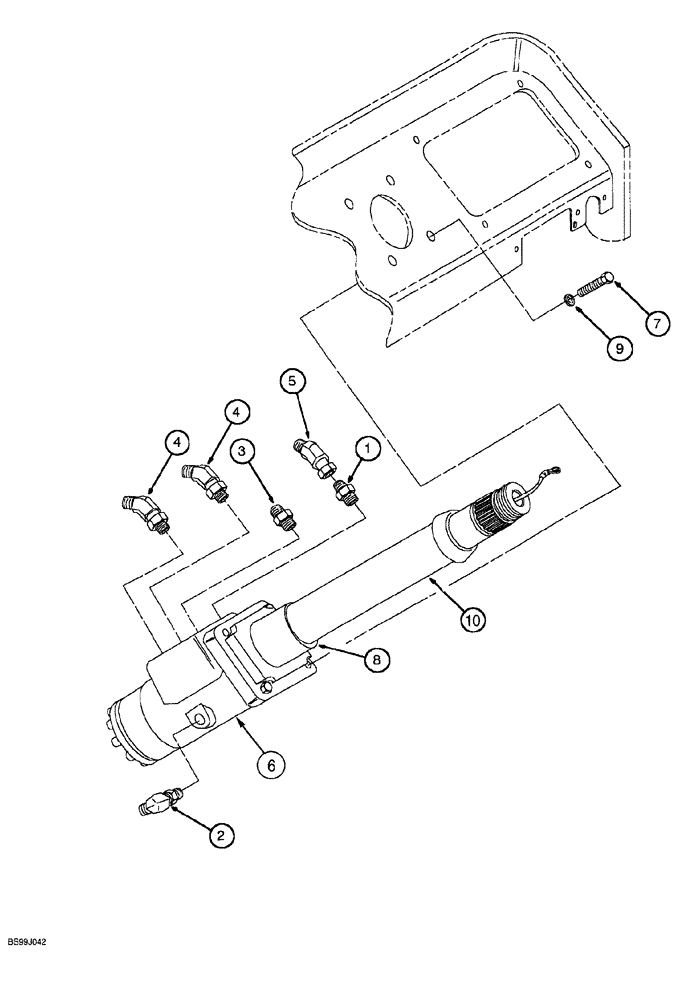

Запчасти Case 689G (05-02) - STEERING CONTROL VALVE AND FITTINGS (05) - STEERING

1

309983A1

ADAPTER

straight

1шт.

2

309962A1

ADAPTER

ELBOW, 90°

1шт.

3

310172A1

VALVE, CHECK

1шт.

4

309977A1

TEE

ELBOW, 90°

2шт.

5

309975A1

ADAPTER

hydraulic

1шт.

6

310296A1

VALVE

ASSEMBLY steering control, parts list Figure 5-08

1шт.

7

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

8

318024A1

HEATER TUBE

heat shrink

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

2шт.

10

309875A1

STEERING COLUMN

COLUMN-STEERING ASSEMBLY, component parts not serviced separately, see Figure 4-46 for related wiring

1шт.
