(06-38) - TRANSMISSION COMPONENTS, IMPELLER AND TURBINE

Запчасти Case 689G (06-38) - TRANSMISSION COMPONENTS, IMPELLER AND TURBINE (06) - POWER TRAIN

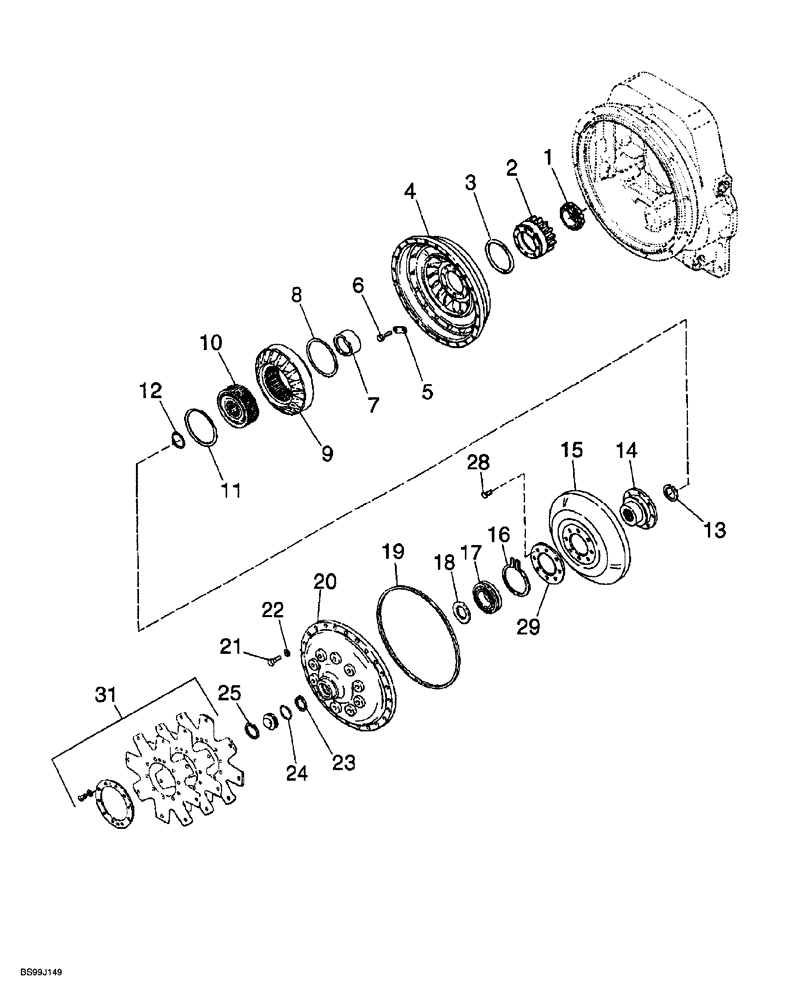

Схема запчастей Case 689G - (06-38) - TRANSMISSION COMPONENTS, IMPELLER AND TURBINE (06) - POWER TRAIN
23
5
17
22
21
16
1
3
19
18
2
31
4
29
20
14
25
8
12
6
9
24
28
11
7
15
13
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

309882A1

TRANSMISSION

ASSEMBLY complete, parts list Figures 6-34 -6-50, Includes: Ref. 1 - 31

1шт.

1

309182A1

ROLLER BEARING

gear

1шт.

2

309183A1

GEAR

impeller

1шт.

3

309184A1

O-RING

impeller

1шт.

4

309604A1

IMPELLER

transmission

1шт.

5

309185A1

BAR

PLATE lock

4шт.

6

310234A1

SCREW

hex

8шт.

7

310224A1

SPACER

freewheel

1шт.

8

310225A1

RING, SNAP

RING SNAP retaining

1шт.

9

310227A1

MEMBER

reaction

1шт.

10

310228A1

CLUTCH

freewheel

1шт.

11

310225A1

RING, SNAP

RING SNAP retaining

1шт.

12

309367A1

RING, SNAP

RING SNAP retaining

1шт.

13

309368A1

RING, SNAP

RING SNAP retaining

1шт.

14

310229A1

HUB

turbine

1шт.

15

310230A1

TURBINE

impeller

1шт.

16

309186A1

RING

locating

1шт.

17

309187A1

BALL BEARING

shaft

1шт.

18

309188A1

WASHER

flat, special

1шт.

19

309151A1

O-RING

impeller cover

1шт.

20

310231A1

COVER

impeller

1шт.

21

310221A1

SCREW

hex

24шт.

22

309147A1

LOCK WASHER

24шт.

23

309368A1

RING, SNAP

RING SNAP retaining

1шт.

24

309897A1

O-RING

plug

1шт.

25

309369A1

SNAP RING

retaining

1шт.

28

310234A1

SCREW

hex

12шт.

29

361443A1

RING

mounting, Serial Range: turbine-hub

1шт.

31

310223A1

KIT

plate, drive

1шт.
