(06-46) - TRANSMISSION COMPONENTS, DISC DRUM AND OUTPUT SHAFT

Запчасти Case 689G (06-46) - TRANSMISSION COMPONENTS, DISC DRUM AND OUTPUT SHAFT (06) - POWER TRAIN

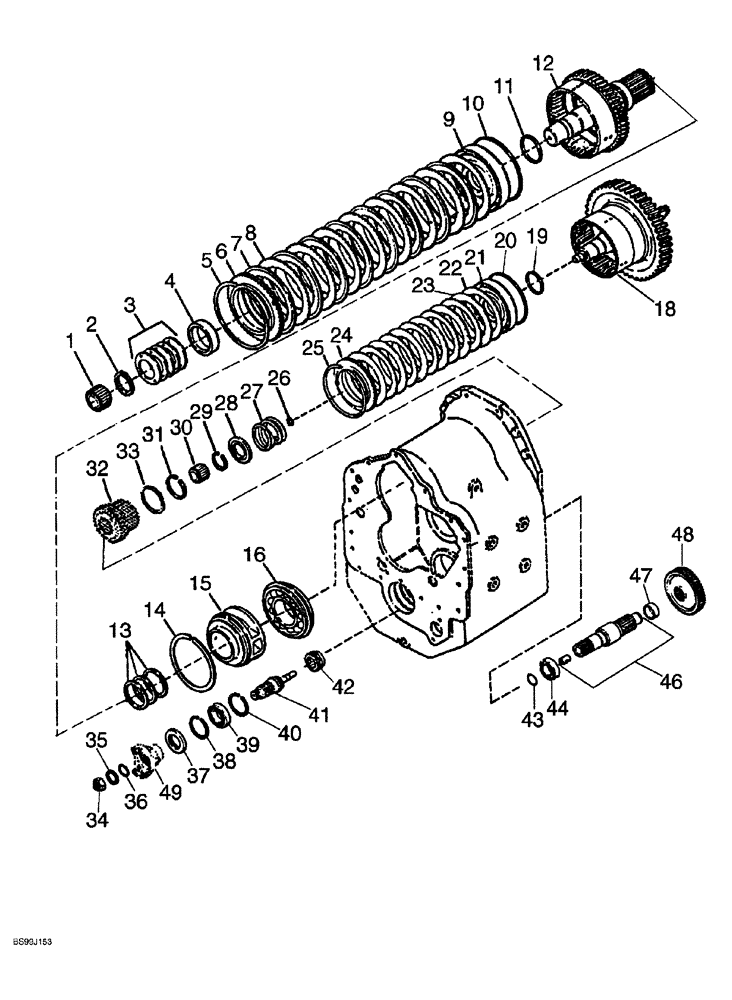

Схема запчастей Case 689G - (06-46) - TRANSMISSION COMPONENTS, DISC DRUM AND OUTPUT SHAFT (06) - POWER TRAIN
23
41
47
11
43
18
27
13
34
40
10
31
44
46
2
12
4
5
16
37
36
24
7
3
25
48
22
19
6
33
32
26
49
9
21
20
14
38
30
39
28
15
1
8
29
35
42
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

309882A1

TRANSMISSION

ASSEMBLY complete, parts list Figures 6-34 - 6-50, Includes: Ref. 1 - 49

1шт.

1

361553A1

BEARING

shaft

1шт.

2

309195A1

RING, SNAP

RING SNAP

1шт.

3

361450A1

SPRING

SET Belleville

1шт.

4

309196A1

SPACER

spring set

1шт.

5

361457A1

RING, SNAP

RING SNAP

1шт.

6

361556A1

BEARING CAP

bearing

1шт.

7

361459A1

DISC

inner

8шт.

8

361460A1

DISC

outer

8шт.

9

361461A1

PISTON

clutch

1шт.

10

314007A1

SEAL

outer piston

1шт.

11

361470A1

SEAL

inner piston

1шт.

12

361571A1

DRUM

clutch

1шт.

13

361572A1

RING

piston

4шт.

14

361574A1

RING

retaining

4шт.

15

361575A1

SLEEVE

clutch

1шт.

16

361576A1

BALL BEARING

clutch shaft

1шт.

18

361577A1

DRUM HUB

clutch

1шт.

19

361578A1

SEAL

piston, inner

1шт.

20

361579A1

SEAL

piston, outer

1шт.

21

361580A1

PISTON

clutch

1шт.

22

361581A1

CLUTCH DISC

CLUTCH DISK outer

6шт.

23

361582A1

CLUTCH DISC

CLUTCH DISK inner

6шт.

24

361583A1

BACK PLATE

1шт.

25

361584A1

RING, SNAP

RING SNAP

1шт.

26

314006A1

RING, PISTON

1шт.

27

361586A1

COIL SPRING

return

1шт.

28

361587A1

RETAINER

spring

1шт.

29

361588A1

RING, SNAP

RING SNAP

1шт.

30

361589A1

NEEDLE BEARING

needle

1шт.

31

361590A1

RING

retaining

1шт.

361591A1

HUB ASSY.

ASSY with retaining ring, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

HUB gear

1шт.

33

NSS

NOT SOLD SEPARAT

RING retaining hub

1шт.

34

361592A1

NUT

hex

1шт.

35

361594A1

WASHER

flat

1шт.

36

314107A1

O-RING

output flange

1шт.

37

361602A1

OIL SEAL

1шт.

38

361603A1

RING

retaining

1шт.

39

361604A1

BALL BEARING

shaft

1шт.

40

361605A1

RING

retaining

1шт.

41

361606A1

SHAFT

output

1шт.

42

361607A1

COUPLING

shaft

1шт.

43

361608A1

RING

retaining

1шт.

44

361431A1

BALL BEARING

output shaft

1шт.

46

361610A1

SHAFT

ASSEMBLY output, with bushings

1шт.

47

361612A1

SPACER

shaft

1шт.

48

361611A1

GEAR

output shaft

1шт.

49

361613A1

FLANGE

output

1шт.
