(08-14) - BOOM CYLINDER HYDRAULICS, CONTROL VALVE TO SHEET METAL

Запчасти Case 689G (08-14) - BOOM CYLINDER HYDRAULICS, CONTROL VALVE TO SHEET METAL (08) - HYDRAULICS

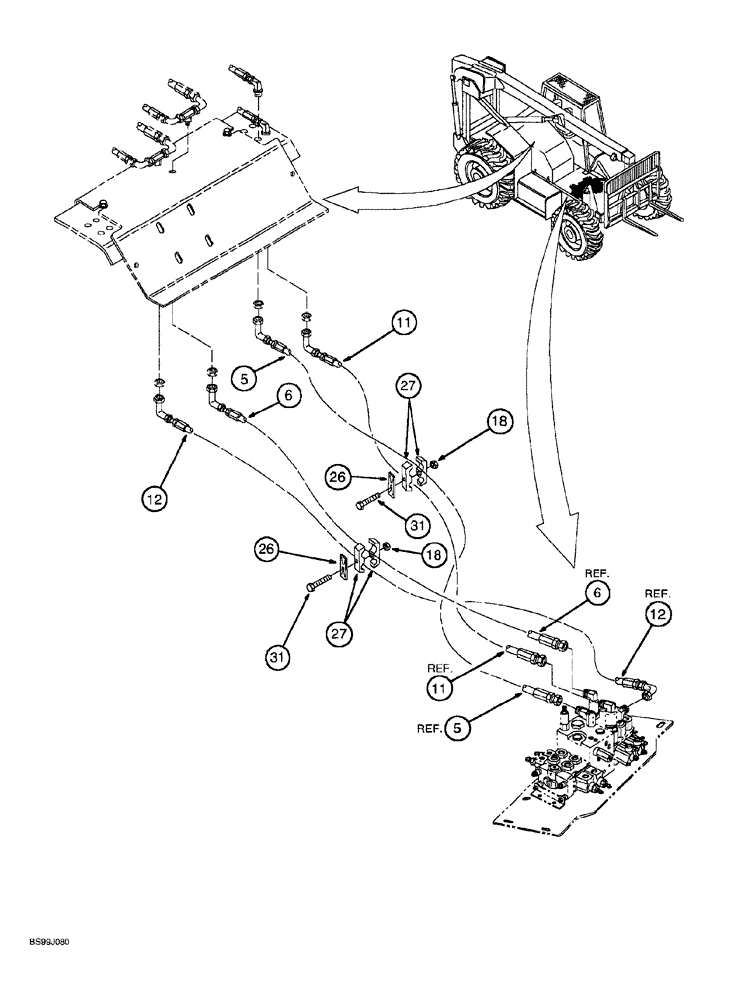

Схема запчастей Case 689G - (08-14) - BOOM CYLINDER HYDRAULICS, CONTROL VALVE TO SHEET METAL (08) - HYDRAULICS
11
18
5
26
27
12
5
26
12
11
31
27
31
6
18
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

5

309849A1

HOSE ASSY.

1842 mm (72-1/2 inch) long

1шт.

6

309850A1

HOSE ASSY.

2108 mm (83 inch) long

1шт.

11

309848A1

HOSE ASSY.

2045 mm (80-1/2 inch) long

1шт.

12

309924A1

HOSE ASSY.

2438 mm (96 inch) long

1шт.

18

309986A1

LOCK NUT

hex, 5/16 inch NC

2шт.

26

310044A1

PLATE

clamp support

2шт.

27

310042A1

CLAMP

hose, double

4шт.

31

426-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

hex, 5/16 NCx 3-1/4 inch, grade 8

2шт.
