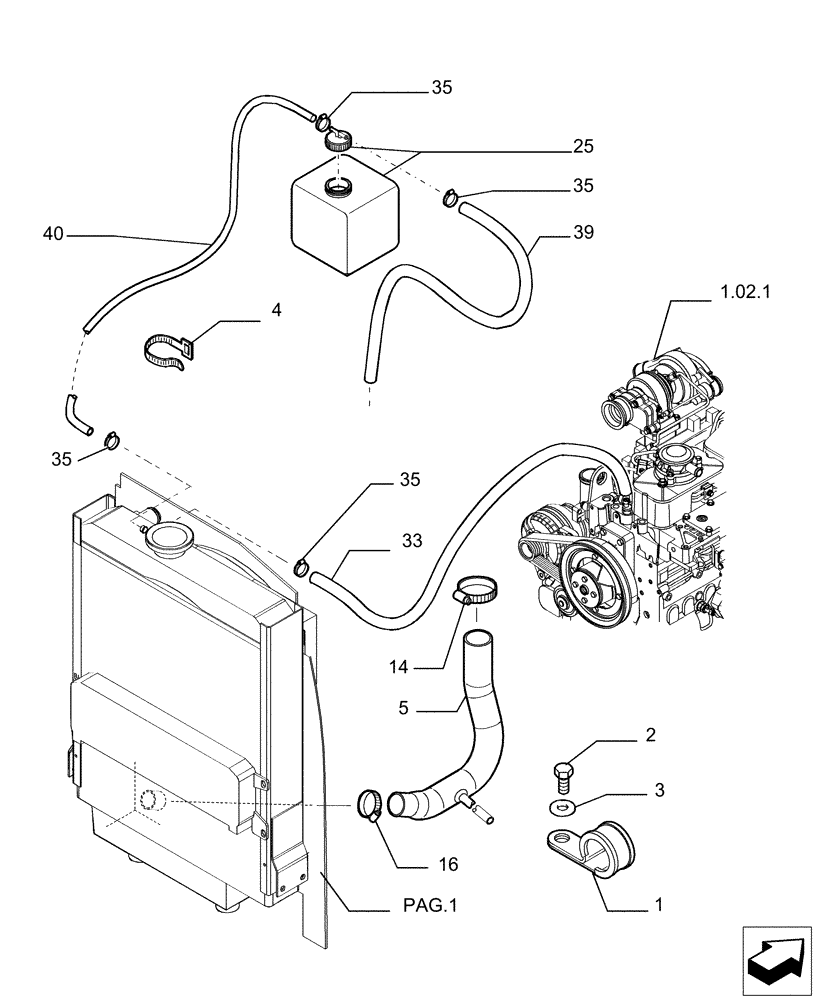

Запчасти Case TX742 (1.17.A[04]) - ENGINE COOLING - VERSION (02) (10) - ENGINE

1

71425615

CLIP

1шт.

2

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

3

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

4

4982514

CABLE TIE,188mm L

CABLE STRAP

4шт.

5

87613610

HOSE,38mm ID x 887mm L

1шт.

14

79083846

HOSE CLAMP,M40-60

50-70

1шт.

16

79083846

HOSE CLAMP,M40-60

1шт.

25

76094576

PAN

- ASSY

1шт.

33

87352426

HOSE,9.50 mm ID x 570 mm

1шт.

35

79084753

HOSE CLIP,M10-18

5шт.

39

76094577

FLEXIBLE HOSE,M8 x 600 L

1шт.

40

76094578

TUBE,M80 ID x 1200 L

1шт.
