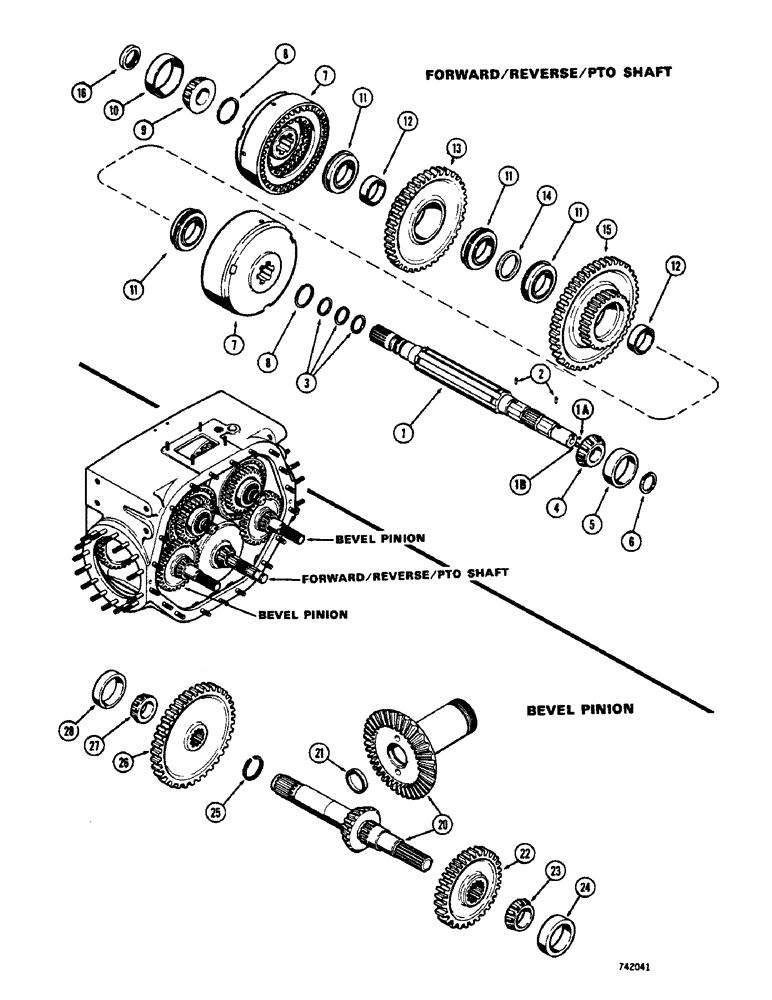

Запчасти Case 475 (084) - TRANSMISSION FORWARD-REVERSE AND PTO SHAFT (21) - TRANSMISSION

1

A54108

SHAFT

ASSY. - forward/reverse & P.T.O.

1шт.

1a

211-7

BALL,1/4" Dia

steel 1/4" Dia

1шт.

1b

211-11

BALL,3/8" Dia

- steel, . 3/8" Dia

1шт.

2

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

3

A51841

RING

- seal, clutch shaft oil collector (Rpl. A54110)

3шт.

4

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing, clutch shaft, front (1-5/8" I.D.)

1шт.

5

G15202

CUP

- bearing, clutch shaft, front (3" O.D.)

1шт.

6

R20786

RING

- snap, front bearing retaining

1шт.

7

A50411

CLUTCH

ASSEMBLY - forward & reverse (Parts list Fig. 88)

2шт.

8

A50046

RING

- snap, clutch retaining

2шт.

9

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing, clutch shaft, rear (1-37/64" I.D.)

1шт.

10

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing, clutch shaft, rear (3-11/32" O.D.)

1шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

ASSEMBLY - clutch

4шт.

12

A50293

SPACER

- clutch bearings

2шт.

13

A50506

GEAR

- drive, forward clutch (29 & 51 teeth)

1шт.

14

A50034

SPACER

- drive gears

1шт.

15

A50505

GEAR WHEEL

GEAR - drive, reverse clutch (29 & 56 teeth)

1шт.

16

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, P.T.O. shaft

1шт.

17

RESERVED

1шт.

18

RESERVED

1шт.

19

RESERVED

1шт.

20

A50275

GEAR-SET

PINION AND GEAR SET - A54118 Transmission, bevel and shaft

2шт.

20

A51898

SHAFT

PINION AND GEAR SET - A51897 Transmission, bevel and shaft

2шт.

21

A50099

PLUG

- bevel pinion (2-17/64" cup type), transmission and shaft

2шт.

22

A51930

GEAR

- driven, high clutch (A51897 transmission), bevel pinion and shaft

2шт.

22

A50512

GEAR

- driven, high clutch (A54118 transmission), bevel pinion and shaft

2шт.

23

R17219

ROLLER BEARING

CONE - bearing, pinion shaft, front (1-5/8" I.D.), transmission bevel

2шт.

24

F62007

CUP

- bearing, pinion shaft, front (3-1/8" O.D.), transmission bevel

2шт.

25

A27085

RING

- snap, low clutch driven gear retaining, transmission bevel and shaft

2шт.

26

A50575

GEAR

- driven, low clutch (51 teeth), transmission bevel and shaft

2шт.

27

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

CONE - bearing, hi-low clutch, rear (1-1/2" I.D.), transmission bevel and shaft

2шт.

28

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - bearing, hi-low clutch, rear (2-27/32" O.D.), transmission bevel and shaft

2шт.
