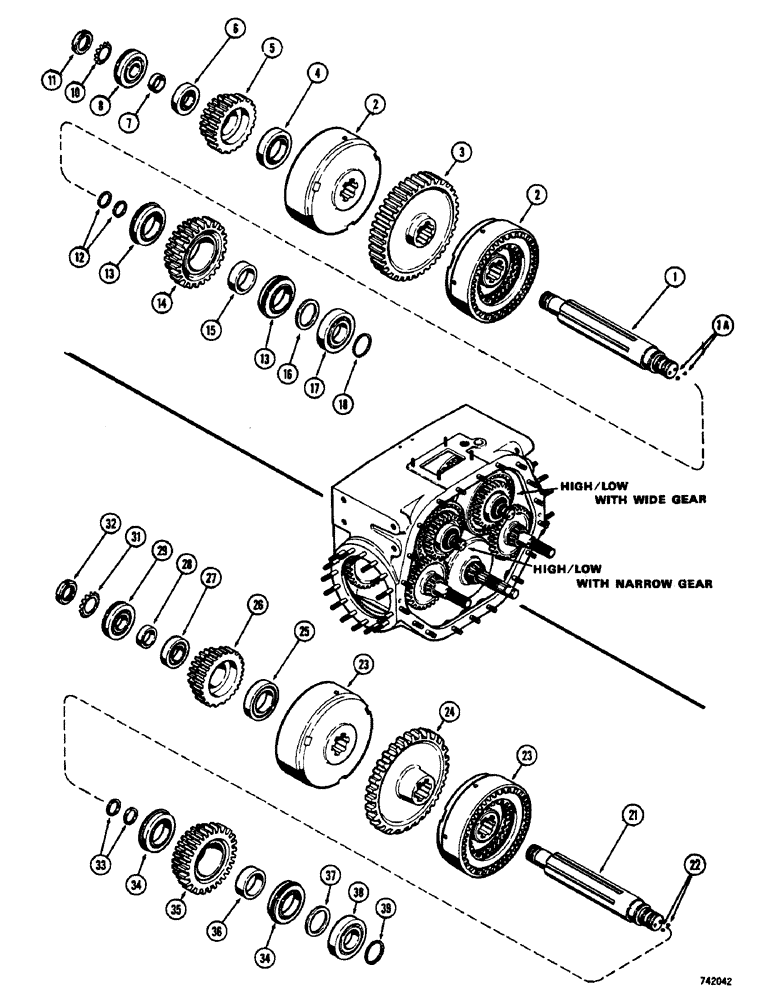

Запчасти Case 475 (086) - TRANSMISSION HIGH AND LOW CLUTCH SHAFTS, L.H. CLUTCH AND SHAFT (21) - TRANSMISSION

1

A50521

SHAFT

ASSEMBLY

1шт.

1a

211-7

BALL,1/4" Dia

steel 1/4" Dia

1шт.

2

A50412

CLUTCH

ASSEMBLY - high & low (Parts list Fig. 88)

2шт.

3

NLS

NO LONGER SERVICED

- drive (51 teeth) ( 1-1/2" tooth width)

1шт.

4

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner

1шт.

5

A50574

SHAFT

GEAR - drive, low clutch (20 & 29 teeth)

1шт.

6

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, outer

1шт.

7

A50036

RING

SPACER - low clutch drive gear bearing (1-3/8 x 1-5/8 x 7/16")

1шт.

8

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSEMBLY - clutch shaft, rear

1шт.

9

RESERVED

1шт.

10

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing

1шт.

11

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearings

1шт.

12

A50039

SEAL

RING - seal, clutch shaft oil collector

2шт.

13

G10418

BEARING, BALL

BEARING ASSEMBLY - high clutch gear

2шт.

14

A50509

GEAR WHEEL

GEAR - drive, high clutch

1шт.

15

A50035

BUSHING

SPACER - high clutch gear bearings (1-31/32 x 2-3/8 x 49/64")

1шт.

16

A50034

SPACER

- front clutch shaft bearing (1-31/32 x 2-3/8 x 1/8")

1шт.

17

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft, front

1шт.

18

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining

1шт.

20

RESERVED

1шт.

21

A50521

SHAFT

ASSEMBLY, r.h. clutch

1шт.

22

211-7

BALL,1/4" Dia

steel, RH clutch and shaft 1/4" Dia

1шт.

23

A50412

CLUTCH

ASSEMBLY - high & low (Parts list Fig. 88), r.h. clutch and shaft

2шт.

24

A50511

GEAR

- drive (51 teeth) (11/16" tooth width), r.h. clutch and shaft

1шт.

25

G10418

BEARING, BALL

BEARING - ball, low clutch gear, inner, r.h. and shaft

1шт.

26

A50574

SHAFT

GEAR - drive, low clutch (20 & 29 teeth), r.h. and shaft

1шт.

27

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball, low clutch gear, outer, r.h. clutch and shaft

1шт.

28

A50036

RING

SPACER - low clutch drive gear bearing (1-3/8 x 1-5/8 x 7/16"), r.h. and shaft

1шт.

29

40031

BALL BEARING,34.99mm ID x 72mm OD x 17mm W

ASSEMBLY - clutch shaft, rear, r.h. and shaft

1шт.

30

RESERVED, r.h. clutch and shaft

1шт.

31

192-307

LOCK WASHER,Type W-07

WASHER - lock, rear bearing, r.h. clutch and shaft

1шт.

32

131-1007

LOCK NUT,Bearing, 1.3780" Bore

NUT - lock, shaft bearings, r.h. clutch and shaft

1шт.

33

A50039

SEAL

RING - seal, clutch shaft oil collector, r.h. and shaft

2шт.

34

G10418

BEARING, BALL

BEARING ASSEMBLY - high clutch gear, r.h. and shaft

2шт.

35

A50509

GEAR WHEEL

GEAR - drive, high clutch, r.h. and shaft

1шт.

36

A50035

BUSHING

SPACER - high clutch gear bearings (1-31/32 x 2-3/8 x 49/64"), r.h. and shaft

1шт.

37

A50034

SPACER

- front clutch shaft bearing (1-31/32 x 2-3/8 x 1/8"), r.h. and shaft

1шт.

38

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, clutch shaft, front, r.h.

1шт.

39

A50033

SNAP RING,#177, 1.657", Ext

RING - snap, front bearing retaining, r.h. clutch and shaft

1шт.
