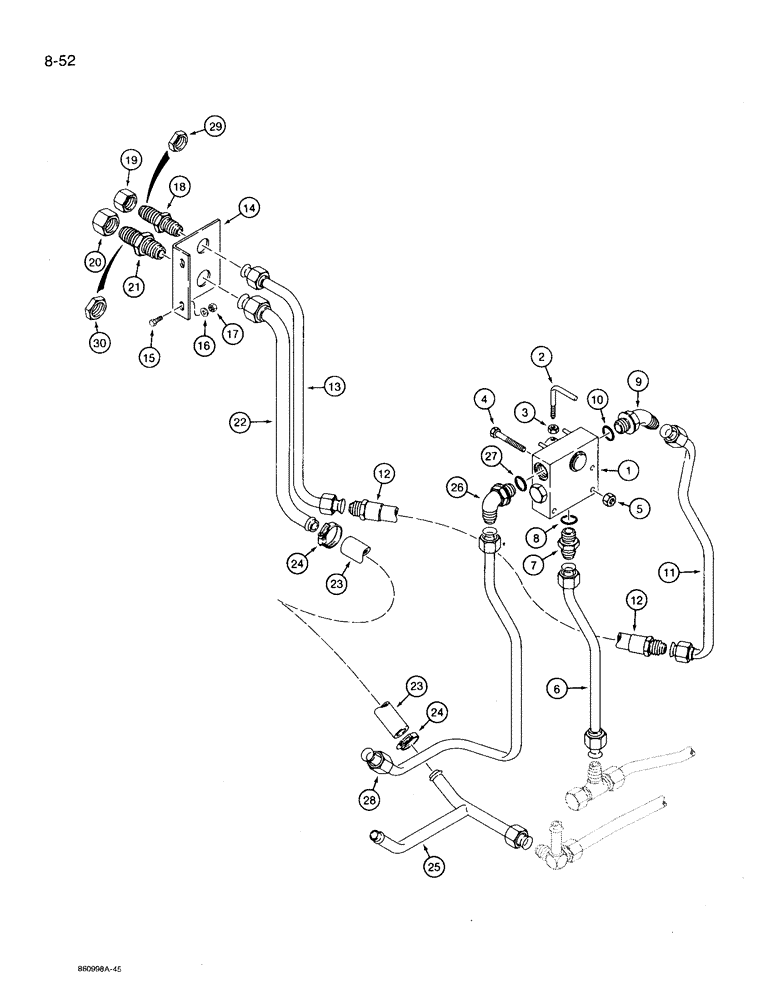

Запчасти Case 360 (8-52) - REAR ATTACHMENT AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

control, rear attachment auxiliary hydraulics, for correct assembly and components, see Figs. 8-68 and 8-69A

1шт.

2

H434076

HANDLE

control valve, replaces existing handle and knob for this application, used with valves shown on Fig. 8-68

1шт.

2

H439071

control valve, replaces existing handle and knob for this application, used with valve shown on Fig. 8-69A

1шт.

3

131-1169

LOCK NUT,5/16"-24, GA

H434076 handle

1шт.

3

230-4216

LOCK NUT,3/8"-16, GA

H436071 handle

1шт.

4

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

5

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

6

H672432

TUBE,15.8 mm OD

rear attachment supply, tee to control valve

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

straight, 7/8-14 inch flare x O-ring boss, Incl. Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

H672434

TUBE,15.8 mm OD

control valve to Hydra-Borer or remote attachment supply hose

1шт.

12

H202093

HOSE

21-1/2 inch (546 mm) long, Hydra-Borer or remote attachment supply

1шт.

13

H672431

TUBE,15.8 mm OD

supply hose to bulkhead adapter

1шт.

14

H434000

ANGLE

tube mounting

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

17

232-4115

LOCK NUT,5/16"-18, GC

2шт.

18

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

19

218-756

CAP,37 Degree, 7/8"-14

1шт.

20

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

22

H672430

TUBE,19 mm OD x 323,198 mm L

remote attachment return

1шт.

23

H380170

HOSE,0.75" ID x 16.70", SAE 30R2 Type 2

Remote Attachment Return, Cut from H379214 Bulk Hose, See Below

1шт.

24

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

adj, 11/16 - 1-1/4 inch dia

2шт.

25

H672399

TUBE,19 mm OD x 52,145 mm L

Hydra-Borer and remote attachment common return

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

H672433

TUBE,15.8 mm OD

control valve to Hydra-Borer

1шт.

29

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

30

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

H379214

HYDRAULIC HOSE,19.00 mm ID x 5588.00 mm Bulk, SAE 30R2

1шт.
