(3-02) - FUEL TANK AND FUEL LINES - DEUTZ DIESEL ENGINE MODELS, COMMON TO MODEL

Запчасти Case 360 (3-02) - FUEL TANK AND FUEL LINES - DEUTZ DIESEL ENGINE MODELS, COMMON TO MODEL (03) - FUEL SYSTEM

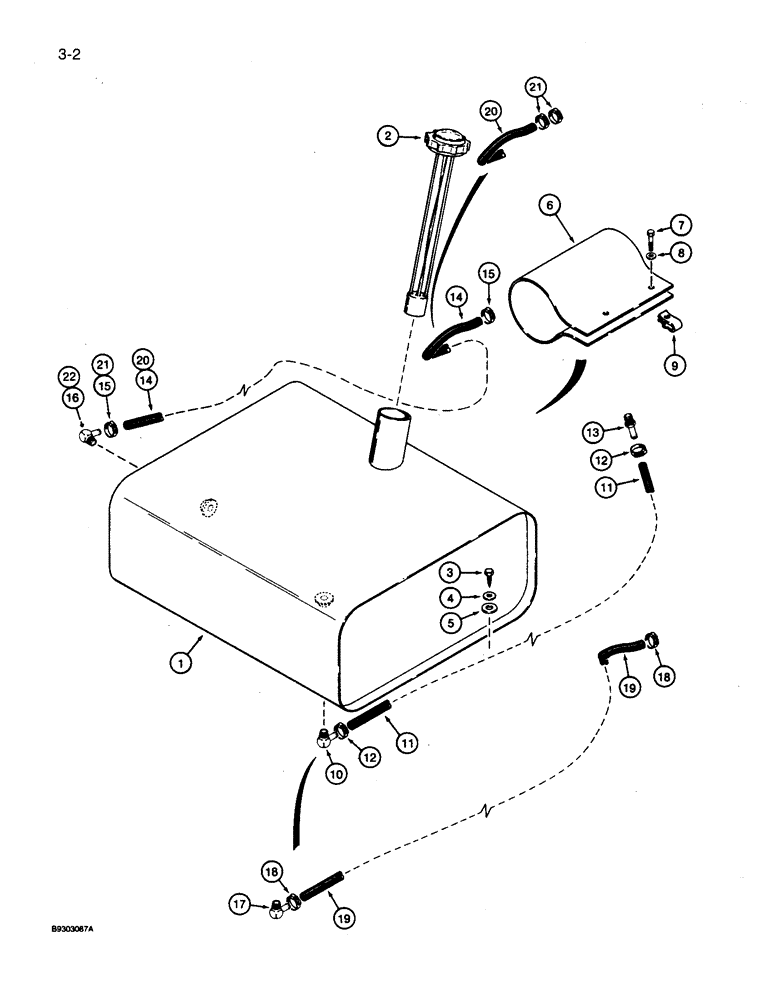

Схема запчастей Case 360 - (3-02) - FUEL TANK AND FUEL LINES - DEUTZ DIESEL ENGINE MODELS, COMMON TO MODEL (03) - FUEL SYSTEM
5
4
15
10
18
21
11
11
16
19
12
22
19
20
3
13
8
1
21
7
14
6
15
12
2
17
9
18
14
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

COMMON TO MODEL

1шт.

H672620

FUEL TANK

fuel, Includes: Ref 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

fuel

1шт.

2

N13955

GAUGE

fuel level indicator

1шт.

3

187-1070

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

hex, self-tapping, 5/16 NC x 1 inch

4шт.

4

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

5

H274894

WASHER

flat, 1/2 inch, special

4шт.

6

H374678

FLAP

hose, rubber, at articulation joint

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

H426775

WASHER

flat, 5/16 inch, hardened

2шт.

9

H346650

NUT

clip, 5/16 inch NC

2шт.

PRIOE TO PIN JAF0104257

1шт.

10

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW, 90 degree, 1/4 inch barb end x PT PRIOR TO P.I.N. JAF0104257

1шт.

11

S120384

HOSE - 1/4 (6 mm) ID x 96 inch (2438 mm) long, cut from S118378 bulk hose, see below PRIOR TO P.I.N. JAF0104257

1шт.

12

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj, PRIOR TO P.I.N. JAF0104257

2шт.

13

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

straight, 1/4 barb end x 1/4 inch PT PRIOR TO P.I.N. JAF0104257

1шт.

14

H318808

FUEL HOSE,0.25" ID x 72.00"

Prior to P.I.N. JAF0104257

1шт.

15

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj, PRIOR TO P.I.N. JAF0104257

2шт.

16

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW, 90 degree, 1/4 inch barb end x PT PRIOR TO P.I.N. JAF0104257

1шт.

PIN JAF0104257

1шт.

17

217-295

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW, 90 degree, 5/16 stem end x 1/4 inch PT P.I.N. JAF0104257 AND AFTER

1шт.

18

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

adj, 1/4 - 5/8 inch dia P.I.N. JAF0104257 AND AFTER

2шт.

19

122301A1

FUEL HOSE,8.00 mm ID x 2135.0 mm, SAE 30R2 TYPE 1

To Lift Pump P.I.N. JAF0104257 AND AFTER

1шт.

122300A1

FUEL HOSE,6.35 mm ID x 2010.00 mm, SAE 30R2 TYPE 1

P.I.N. JAF0104257 and After

1шт.

21

214-335

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

adj, 1/4 - 5/8 inch dia P.I.N. JAF0104257 AND AFTER

3шт.

22

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

P.I.N. JAF0104257 AND AFTER

1шт.

S118378

HOSE,0.25" ID BULK, SAE 30R2 Type 3

P.I.N. JAF0104257 and after

1шт.
