(7-04) - PARKING BRAKE CALIPER

Запчасти Case 360 (7-04) - PARKING BRAKE CALIPER (07) - BRAKES

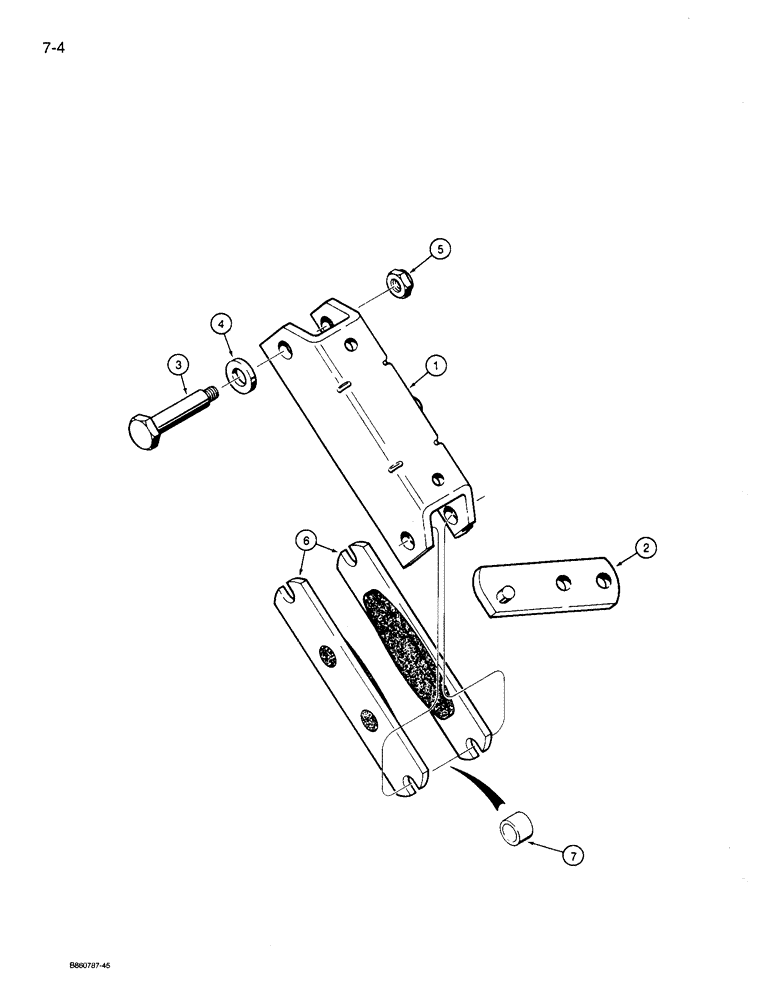

Схема запчастей Case 360 - (7-04) - PARKING BRAKE CALIPER (07) - BRAKES
3
1
4
6
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H638718

CALIPER

parking brake, no longer available, order H673926 caliper on Fig. 7-6 and Ref. 24 and 25 on Fig. 7-2 for service

1шт.

1

H391334

BRACKET

caliper mounting

1шт.

2

H391326

LEVER

actuating

1шт.

3

H391300

BOLT

shoulder, special

2шт.

4

195-533

WASHER,1/2", SAE

2шт.

5

131-508

NUT,3/8"-16

hex, 3/8" - 6 NC, heavy duty

2шт.

6

H391318

BRAKE LINING

LINING, BRAKE SHOE AND LINING - parking brake

2шт.

7

H433988

SPRING

urethane, brake shoe return

2шт.
