(6-34) - SOLENOID VALVE - 187505C91

Запчасти Case 660 (6-34) - SOLENOID VALVE - 187505C91 (06) - POWER TRAIN

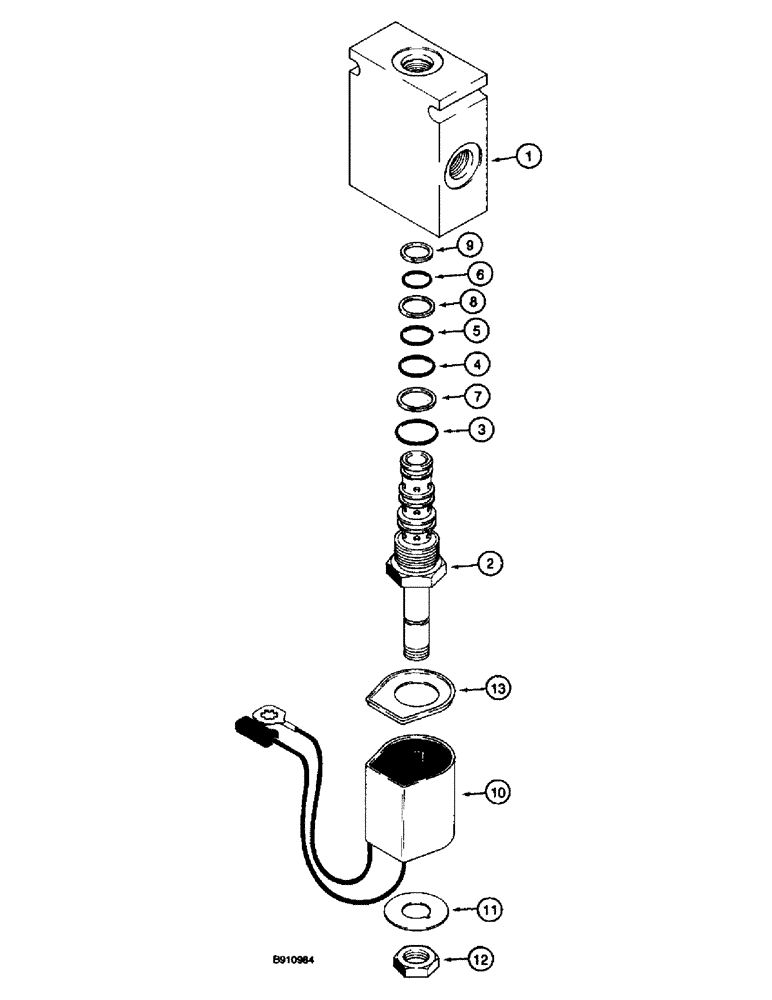

Схема запчастей Case 660 - (6-34) - SOLENOID VALVE - 187505C91 (06) - POWER TRAIN
12
8
2
10
9
6
13
1
11
4
7
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

187505C91

VALVE

ASSEMBLY - solenoid, ground drive motor speed select, see Fig. 6-6 for mounting, Includes: Ref. 1 - 13

1шт.

1

187851C1

BODY

- valve

1шт.

2

187849C1

SOLENOID VALVE

VALVE - solenoid, 4-way, cartridge only

1шт.

187850C1

SEAL KIT

KIT - seal replacement, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - valve

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

187852C1

SWITCH

KIT - solenoid coil, Includes: Ref. 10 - 13

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - with coil, valve

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - coil

1шт.

12

NSS

NOT SOLD SEPARAT

NUT - hex, housing

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - cover, housing

1шт.
