(8-004) - BASIC HYDRAULIC CIRCUIT, OIL COOLER SUPPLY AND RETURN LINES

Запчасти Case 660 (8-004) - BASIC HYDRAULIC CIRCUIT, OIL COOLER SUPPLY AND RETURN LINES (08) - HYDRAULICS

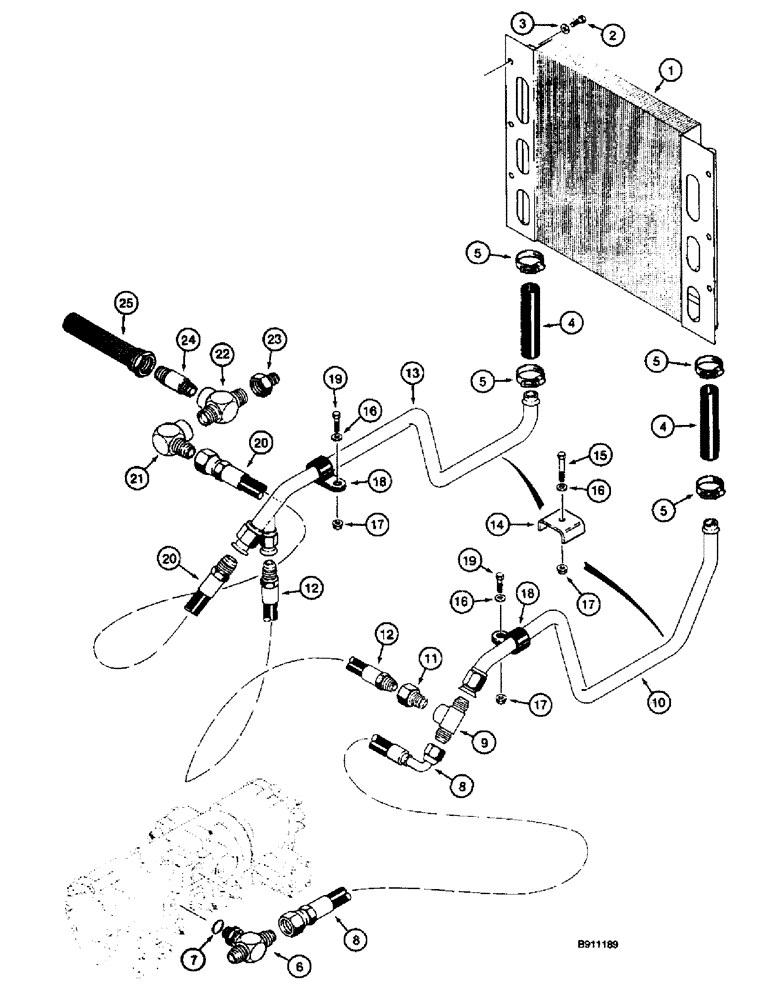

Схема запчастей Case 660 - (8-004) - BASIC HYDRAULIC CIRCUIT, OIL COOLER SUPPLY AND RETURN LINES (08) - HYDRAULICS
10
15
1
16
16
20
13
22
5
11
16
20
12
19
4
25
6
23
3
5
17
17
2
21
5
12
18
14
5
4
18
7
19
8
8
17
9
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H436911

COOLER

- hydraulic oil

1шт.

2

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

6шт.

3

H426775

WASHER

- flat, special, hardened

6шт.

4

3040743R1

HOSE,6.00"

Cut from 3106782R1 Bulk Hose, See Below, Oil Cooler to Tubes 6.00"

2шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

4шт.

6

218-5583

TEE,37 Degree, 1 5/16"-12, 1 1/16"-12 O-Ring Run, 1 1/16"-12

- 1-1/16-12 fl branch x adj O-ring x 1-5/16-12 inch flare, Includes: Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

H439180

HOSE

- 805 mm (31-11/16 inch) long, tandem pump to oil cooler tube

1шт.

9

218-582

TEE,1 5/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- 3/4 female PT branch x 1-5/16-12 inch flare x flare

1шт.

10

H674587

TUBE ASSY.,25.4 mm OD

TUBE - tandem pump hose to oil cooler

1шт.

11

H627513

VALVE

- check

1шт.

12

H439179

HOSE

- 555 mm (21-7/8 inch) long, cooler bypass

1шт.

13

H674638

TUBE ASSY.,25.4 mm OD

TUBE - oil cooler to reservoir return hose

1шт.

14

H231894

CLAMP

- tube

1шт.

15

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

17

231-5146

FLANGE NUT,3/8"-16

3шт.

18

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

H438145

HOSE ASSY.

HOSE - 370 mm (14-9/16 inch) long, tube to hydraulic oil reservoir

1шт.

21

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, 1-5/16-12 flare x 1 inch PT

1шт.

22

221-457

TEE,Pipe, 1" NPT x 3/4" NPT Br

- pipe, 1 x 1 x 3/4 inch

1шт.

23

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- pipe, 3/4 male x 1/2 inch female

1шт.

24

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - straight, 1 PT x 1-1/2 inch

1шт.

25

H151399

FILTER STRAINER

SCREEN - filter, suction

1шт.

3106782R1

HOSE,1.00", SAE R30R2

Bulk 1.00", SAE R30R2

1шт.
