(8-092) - PLOW CONTROL VALVE - H674318, WITH LEVERS MOUNTED VERTICALLY, CONTROL LEVERS

Запчасти Case 660 (8-092) - PLOW CONTROL VALVE - H674318, WITH LEVERS MOUNTED VERTICALLY, CONTROL LEVERS (08) - HYDRAULICS

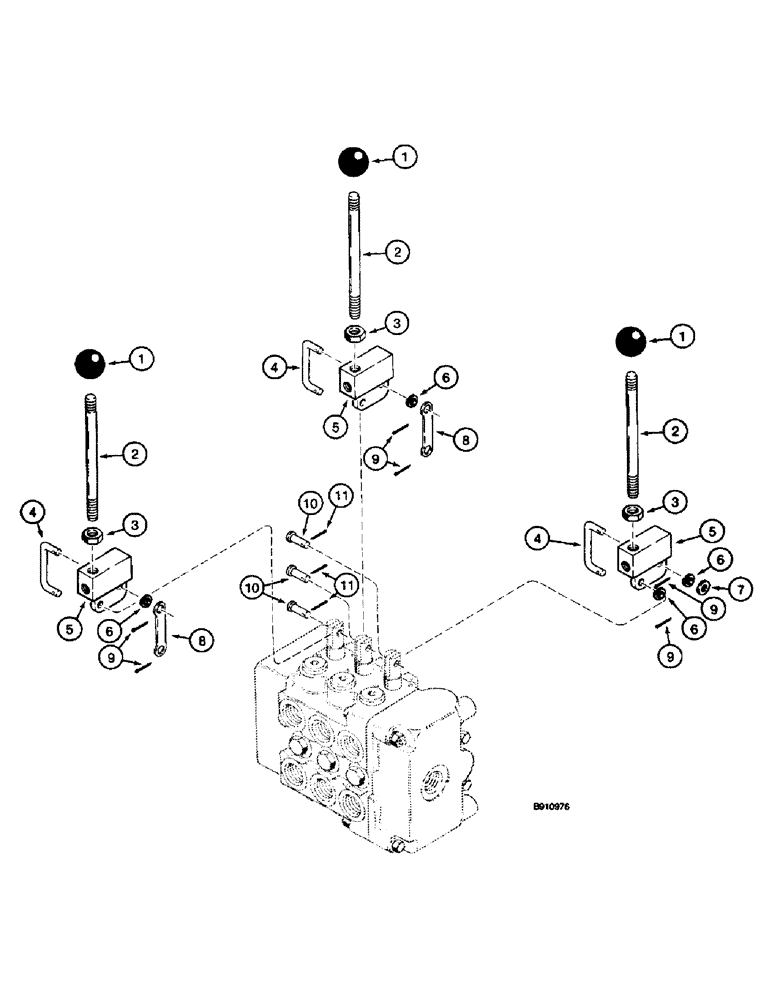

Схема запчастей Case 660 - (8-092) - PLOW CONTROL VALVE - H674318, WITH LEVERS MOUNTED VERTICALLY, CONTROL LEVERS (08) - HYDRAULICS
3
11
6
9
11
2
5
7
1
10
2
5
3
1
6
9
8
9
6
4
8
2
5
4
6
3
1
9
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674318

VALVE

ASSEMBLY - control, plow, complete parts list on Figs. 8-92, 8-94 and 8-98, Includes: Ref. 1 - 11

1шт.

1

H152207

BALL KNOB

KNOB - lever, plow control

3шт.

2

101487A1

ROD

LEVER - plow control

3шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

3шт.

4

H438042

ARM

LINK - C-type

3шт.

5

H438043

BLOCK ASSY.

BLOCK - pivot

3шт.

6

101485A1

SPRING WASHER

- spring

4шт.

7

101486A1

WASHER

- flat, special

1шт.

8

101483A1

LINK

- connecting

2шт.

9

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

6шт.

10

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

3шт.

11

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.
