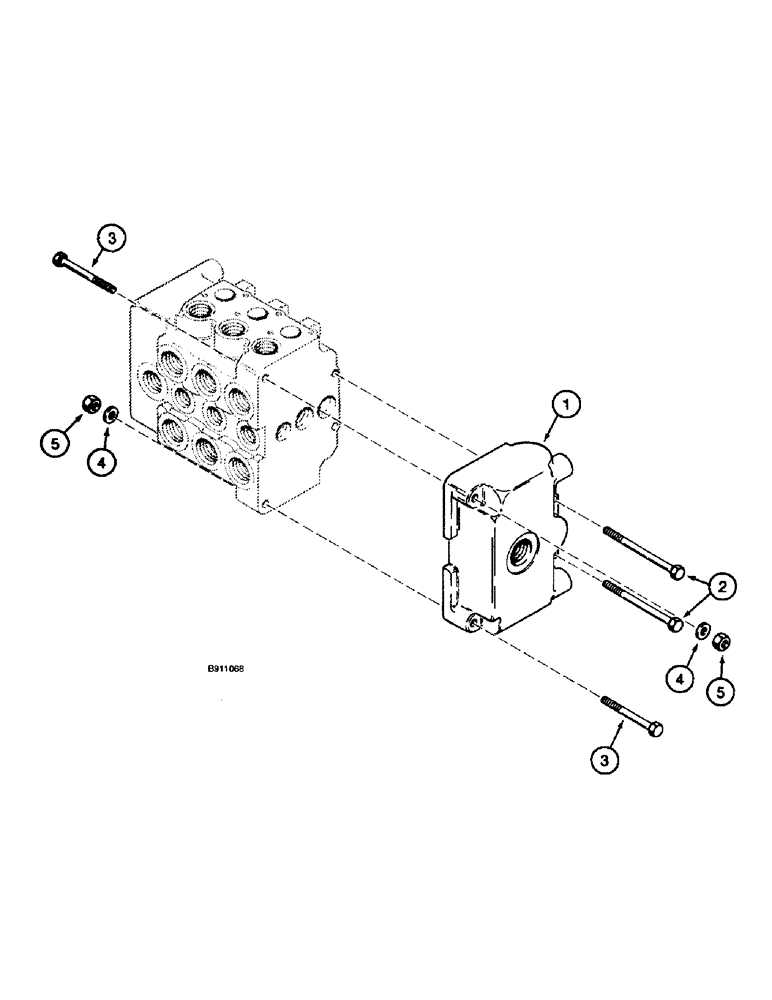

Запчасти Case 660 (8-098) - PLOW CONTROL VALVE - H674318 AND 130806A1, WITH LEVERS MOUNTED VERTICALLY AND HORIZONTALLY (08) - HYDRAULICS

H674318

VALVE

ASSEMBLY - control, plow, complete parts list on Figs. 8-92, 8-94 and 8-98, Includes: Ref. 1 - 5

1шт.

130806A1

VALVE

ASSEMBLY - control, plow, complete parts list on Figs. 8-93A, 8-97A and 8-98

1шт.

1

101488A1

LARGE PLATE

PLATE - end

1шт.

2

414-448

BOLT,Hex, 1/4" - 28 x 3", Gr 5

- hex, 1/4 NF x 3 inch

2шт.

3

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

2шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

5

425-114

NUT,1/4"-28, G5

4шт.
