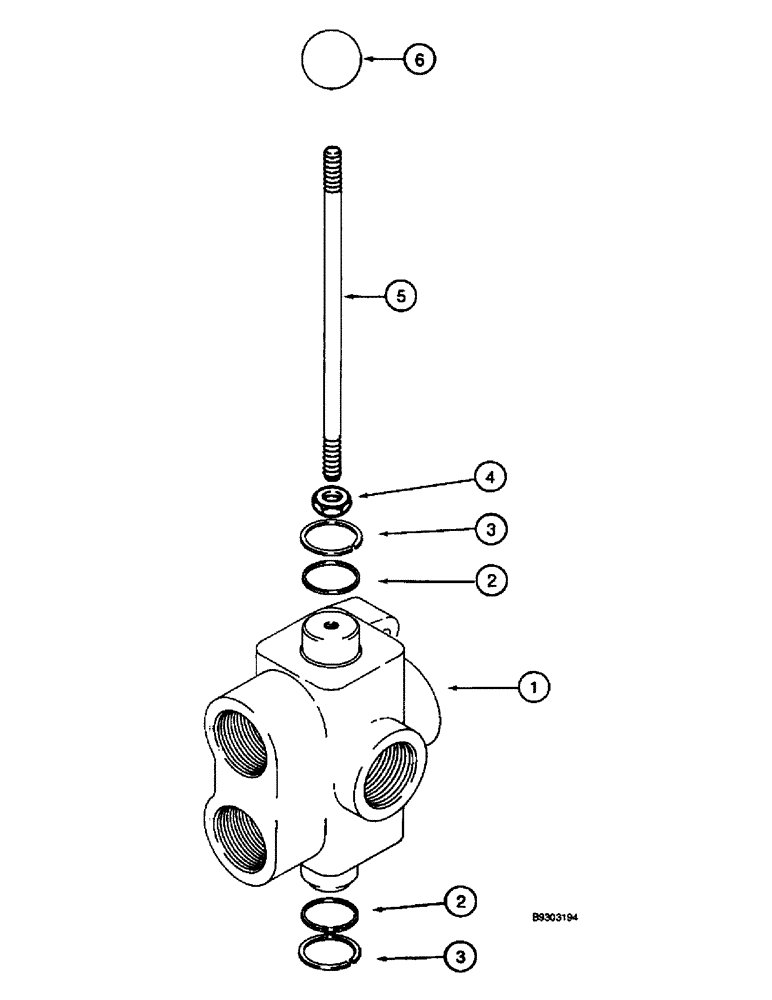

Запчасти Case 660 (8-112) - SELECTOR VALVE ASSEMBLY - L55038, HYDRA-BORER AND BACKHOE (08) - HYDRAULICS

L55038

VALVE

ASSEMBLY - selector, hydra-borer/backhoe, Includes: Ref. 1 - 3A

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - with spool, selector valve

1шт.

2

R24866

RING

SEAL - quad ring

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

3a

R24871

SEAL

- dust, spool, not shown

1шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

5

H438559

ROD

- selector valve control

1шт.

6

31375

WASHER

- selector valve control rod

1шт.
