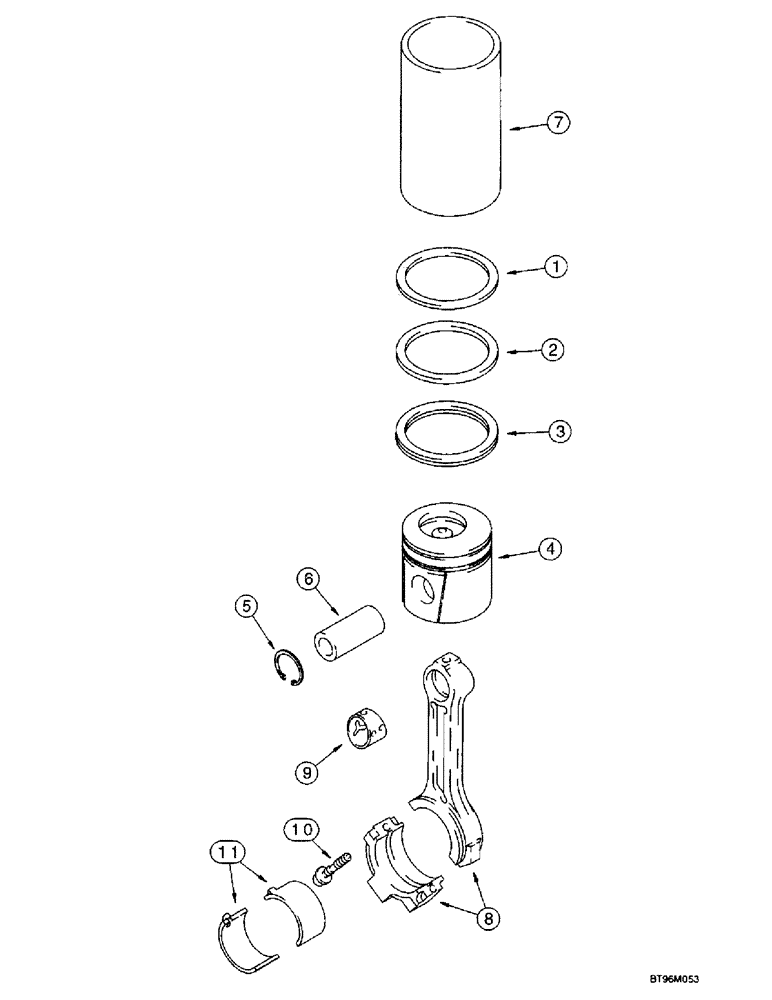

Запчасти Case 660 (2-37E) - PISTONS & CONNECTING RODS, 4-390 EMISSIONS CERTIFIED ENGINE, ENGINE S/N 45705902 AND AFTER, PISTONS (02) - ENGINE

J800681

SET OF PARTS

KIT - piston, standard, use to sevice 3935441 piston, see note

4шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J800682

SET OF PARTS

KIT - piston, standard, use to service 3935442 piston, see note

4шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J800683

SET OF PARTS

KIT - piston, standard, use to service 3935443 piston, see note, Includes: Ref. 1 - 5

4шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J804930

PISTON RING SET

KIT - ring, standard, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J800684

SET OF PARTS

KIT - piston, 0.5 mm oversize, Includes: 1 - 5

4шт.

J804931

PISTON RING SET

KIT - ring, 0.5 mm oversize, Includes: 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

J800685

SET OF PARTS

KIT - piston, 1.0 mm oversize, Includes: Ref. 1 - 5

4шт.

J804932

PISTON RING SET

KIT - ring, 1.0 mm oversize, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize

1шт.

5

J901706

RING

- snap

2шт.

6

J919053

PISTON PIN

PIN - piston

1шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair (When liner is installed, use J800681, J800682, or J800683 standard piston kit, see note

1шт.

Piston height was selected to obtain optimum ratio per cylinder. To service, check part number of the pistons in the engine and order the service kit for that part number. The piston number or last 4 digits are stamped on top of the piston. To avoid piston interferences with the valves, the piston must be matched to the cylinder.

1шт.

J942581

ROD, CONNECTING

ROD ASSEMBLY - connecting, new, includes both halves, Includes: Ref. 8 - 10

4шт.

JR942581

REMAN-CONNECTING ROD

Rod Assembly - connecting, remanufactured, component parts shown on this page do not apply to the remanufactured assembly

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Return Number - use this part number to return connecting rod for credit when using a remanufactured assembly.

4шт.

84145405R

REMAN-CONNECTING ROD

660 S/N 45705902 AND AFTER (4/93-), Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

ROD - connecting

1шт.

9

J941476

BUSHING

- connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex, special, connecting rod

2шт.

11

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

KIT - bearing, upper and lower set, standard, connecting rod

4шт.

11

A77466

BEARING SET

KIT - bearing, upper and lower set, 0.25 mm oversize, connecting rod

4шт.

11

A77467

BEARING LINER

KIT - bearing, upper and lower set, 0.50 mm oversize, connecting rod

4шт.

11

A77468

BEARING SET

KIT - bearing, upper and lower set, 0.75 mm oversize, connecting rod

4шт.

11

A77469

BEARING SET

KIT - bearing, upper and lower set, 1.00 mm oversize, connecting rod

4шт.
