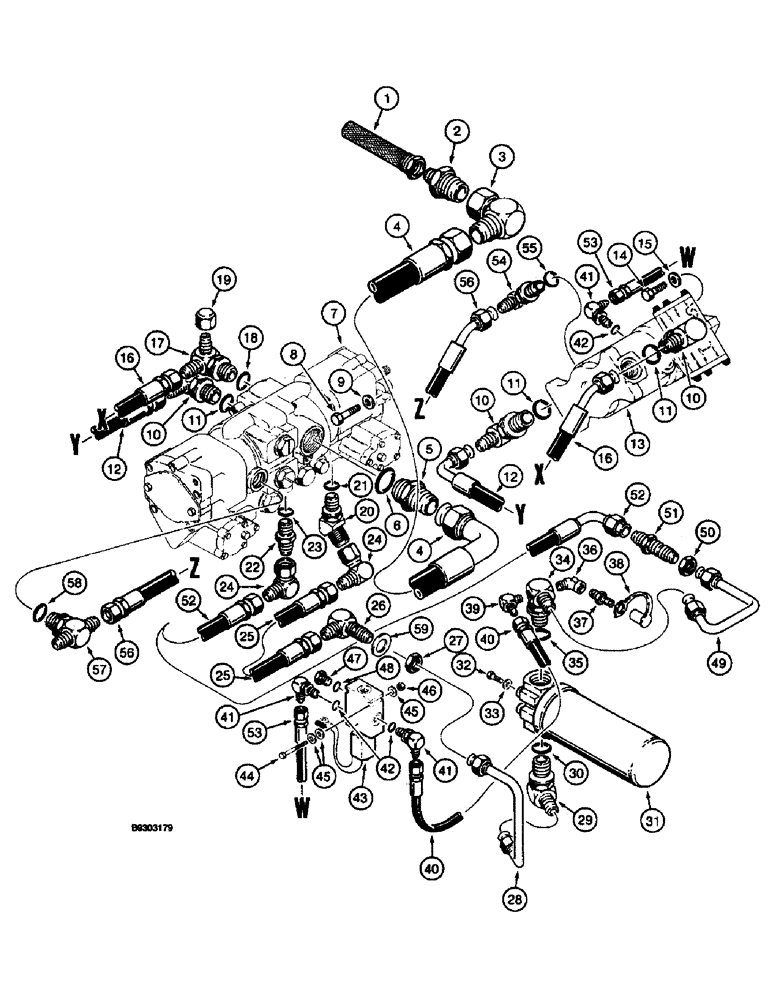

Запчасти Case 660 (6-06) - GROUND DRIVE HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

H151399

FILTER STRAINER

SCREEN - filter

1шт.

2

218-1029

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - straight, 1-5/8-12 flare x 1 inch PT

1шт.

3

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree, 1-5/8-12 inch flare x swivel

1шт.

4

H438016

HOSE ASSY.

HOSE - 1245 mm (49 inch) long, reservoir to tandem pump

1шт.

5

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 6

1шт.

6

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

7

H673751

PUMP

ASSEMBLY - tandem, parts list Figs. 6-10 - 6-20

1шт.

8

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

9

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

10

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 11

3шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

12

H438010

HOSE ASSY.

HOSE - 984 mm (38-3/4 inch) long, tandem pump to ground drive motor

1шт.

13

H674155

HYDRAULIC MOTOR

MOTOR ASSEMBLY - ground drive, parts list Fig. 6-24

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

16

H438009

HOSE ASSY.

HOSE - 949 mm (38-3/4 inch) long, ground drive motor to tandem pump

1шт.

17

H438135

ADAPTER

TEE - special, Includes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

19

218-756

CAP,37 Degree, 7/8"-14

1шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

2шт.

25

H439347

HOSE

- 565 mm (22-1/4 inch) long, tandem pump to charge filter

1шт.

26

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 7/8-14 inch flare x bulkhead flare

1шт.

27

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

28

H675130

TUBE,15.88 mm OD

- charge filter inlet

1шт.

29

218-5130

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

90º, 7/8-14 flare x 1-5/16"-12 adj O-ring boss, Incl. Ref 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

D125507

FILTER

ASSEMBLY - hydraulic oil, charge, parts list Fig. 8-62

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

4шт.

34

H439363

ADAPTER

ELBOW - 90 degree, special, special, Includes: Ref. 34

1шт.

35

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

36

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

37

H434164

COUPLING

COUPLER - quick check

1шт.

38

H434163

DUST CAP

CAP - dust

1шт.

39

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 9/16-18 flare x 1/8 inch PT

1шт.

40

H438080

HOSE

- 510 mm (20 inch) long, charge, Serial Range: filter-solenoid

1шт.

41

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 42

3шт.

43

187505C91

VALVE

ASSEMBLY - solenoind, parts list Fig. 6-34

1шт.

44

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

45

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

6шт.

46

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

47

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 48 Hex Hd, 9/16"-18 ORB

1шт.

49

H675131

TUBE,15.88 mm OD

- charge filter outlet

1шт.

50

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, LOCK, Blkhd, 7/8"-14

1шт.

51

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

52

H439346

HOSE

- 712 mm (28 inch) long, charge filter to tandem pump

1шт.

53

H437992

HOSE ASSY.

HOSE - 736 mm (29 inch) long, solenoid valve to ground drive motor

1шт.

54

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 55

1шт.

55

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

56

H439348

HOSE

- 660 mm (26 inch) long, ground drive motor case drain

1шт.

57

218-5583

TEE,37 Degree, 1 5/16"-12, 1 1/16"-12 O-Ring Run, 1 1/16"-12

- 1-1/16-12 fl branch x adj O-ring x 1-5/16-12 inch flare, Includes: Ref. 58

1шт.

58

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

59

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

1шт.

42

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

48

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
