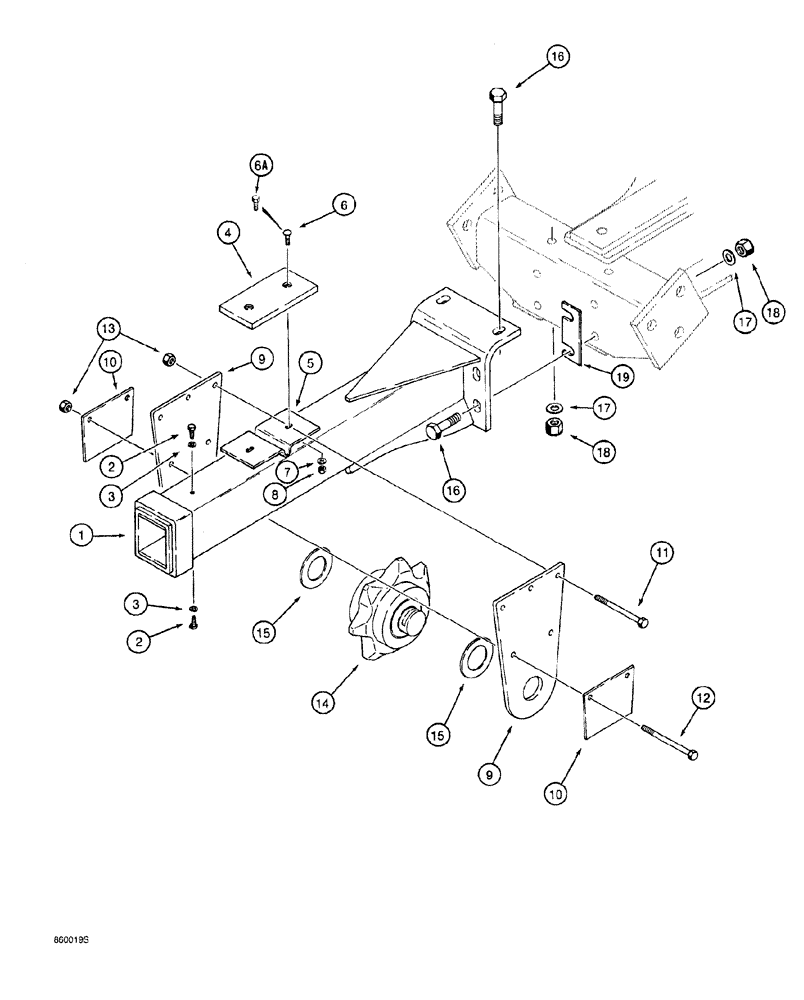

Запчасти Case 760 (09-064) - TRENCHER BOOMS AND MOUNTING, STANDARD BOOM (89) - TOOLS

1

H672137

BOOM

trencher, uses 1 idler sprocket and appropriate hardware, 4 foot, if used

1шт.

See Fig. 9-62 for trencher boom mounting bracket and Fig. 9-66 for standard trencher boom end

1шт.

1

H672138

BOOM

trencher, uses 1 idler sprocket and appropriate hardware, 5 foot, if used

1шт.

See Fig. 9-62 for trencher boom mounting bracket and Fig. 9-66 for standard trencher boom end

1шт.

1

H672139

BOOM

trencher, uses 2 idler sprockets and appropriate hardware, 6 foot, if used

1шт.

See Fig. 9-62 for trencher boom mounting bracket and Fig. 9-66 for standard trencher boom end

1шт.

1

H672140

BOOM

trencher, uses 2 idler sprockets and appropriate hardware, 7 foot, if used

1шт.

See Fig. 9-62 for trencher boom mounting bracket and Fig. 9-66 for standard trencher boom end

1шт.

2

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

3

492-11031

LOCK WASHER,5/16"

2шт.

4

H433396

PROTECTOR

PAD wear, trencher boom, polyethylene, if used

1-2шт.

4

H434548

STRIP

PAD wear, trencher boom, steel, if used

1-2шт.

5

H433395

PROTECTOR

PLATE wear pad mounting

1-2шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

Used with H433396 wear pad

2-4шт.

6a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used with H434548 wear pad

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2-4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

2-4шт.

9

H433947

LARGE PLATE

PLATE, LARGE idler sprocket

2-4шт.

10

H433896

RETAINER

idler sprocket plate

2-4шт.

11

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

hex, 1/2 NC x 5-1/4 inch

3шт.

12

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

hex, 1/2 NC x 5-3/4 inch

2шт.

13

230-4218

LOCK NUT,1/2"-13, GA

hex, self-locking, 1/2 inch NC

5шт.

14

H433989

DRIVE SPROCKET

idler, see Fig. 9-68, items 1 through 6, for sprocket and related components

1шт.

15

H433867

WASHER

SPACER idler sprocket

2-4шт.

16

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

6шт.

17

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special

6шт.

18

232-41112

NUT,3/4"-10, GC

6шт.

19

H437275

SHIM,1.50mm Thk

Trencher boom to boom mounting bracket

1шт.
