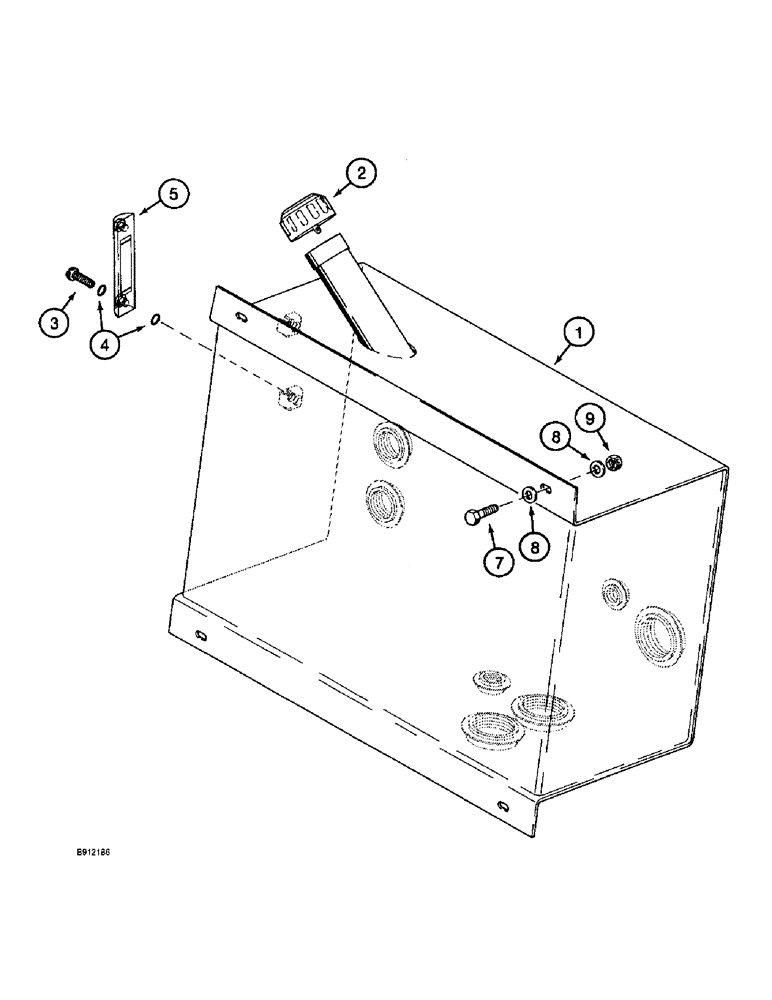

Запчасти Case 860 (8-002) - HYDRAULIC OIL RESERVOIR (08) - HYDRAULICS

1

H674788

RESERVOIR ASSY.

RESERVOIR - hydraulic oil

1шт.

2

H674463

PLUG

CAP - with filter, reservoir fill

1шт.

L116247

GAUGE

ASSEMBLY - sight, hydraulic oil, Includes: Ref. 3 - 6

1шт.

3

N13213

BOLT

BOLT - special, sight gauge

2шт.

4

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

Sight gauge -112, Cl 7, .487" ID x .103" Thk

4шт.

5

NSS

NOT SOLD SEPARAT

GAUGE - sight, order L116247 sight gauge assembly

1шт.

6

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Included with gauge assembly but not used in this application, not shown

2шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

8

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

8шт.

9

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.
