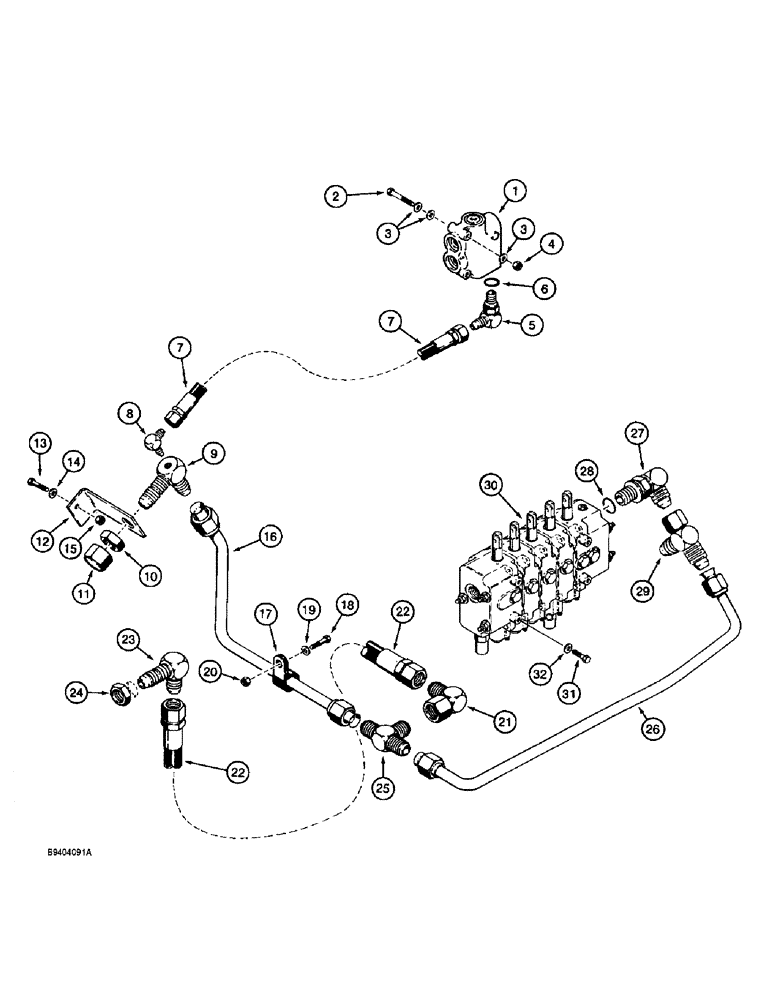

Запчасти Case 860 (8-010) - BASIC HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H672904

VALVE

ASSEMBLY - priority flow divider, parts list figure 5-18

1шт.

2

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

3

H426775

WASHER

- flat, special, hardened

6шт.

4

230-4215

NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.

5

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

- 90 degree, 9/16-18 flare x 7/16-20 inch adj. O-ring boss, Incl. Ref. 6

1шт.

7

L77350

HOSE

- 635 mm (25 inch) long, prority valve to return tube

1шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

9

H439210

FITTING

ELBOW - 90 degree, special

1шт.

10

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

11

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

2шт.

12

H434618

ANGLE

BRACKET - tube support

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

16

H674901

TUBE,19.1 mm OD

- return, see Figures 8-090 and 8-092 for remote hydraulic control valve circuit

1шт.

17

D88051

CLAMP

- tube

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

20

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

21

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

22

H439321

HOSE

- 450 mm (17-3/4 inch) long, rear bulkhead plate, Serial Range: return-tube

1шт.

23

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

24

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

25

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare branch x flare x flare

1шт.

26

H674927

TUBE,19.1 mm OD

- return, to tee at attachment control valve

1шт.

27

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss, see figure 8-012 for return to filter hydraulic circuit, Includes: Ref. 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

29

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel, See figure 8-012 for return to filter hydraulic circuit

1шт.

30

H674793

VALVE

ASSEMBLY - control, attachment and rear steering, parts list figures 8-018 - 8-026

1шт.

31

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

32

H426775

WASHER

- flat, special, hardened

3шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
