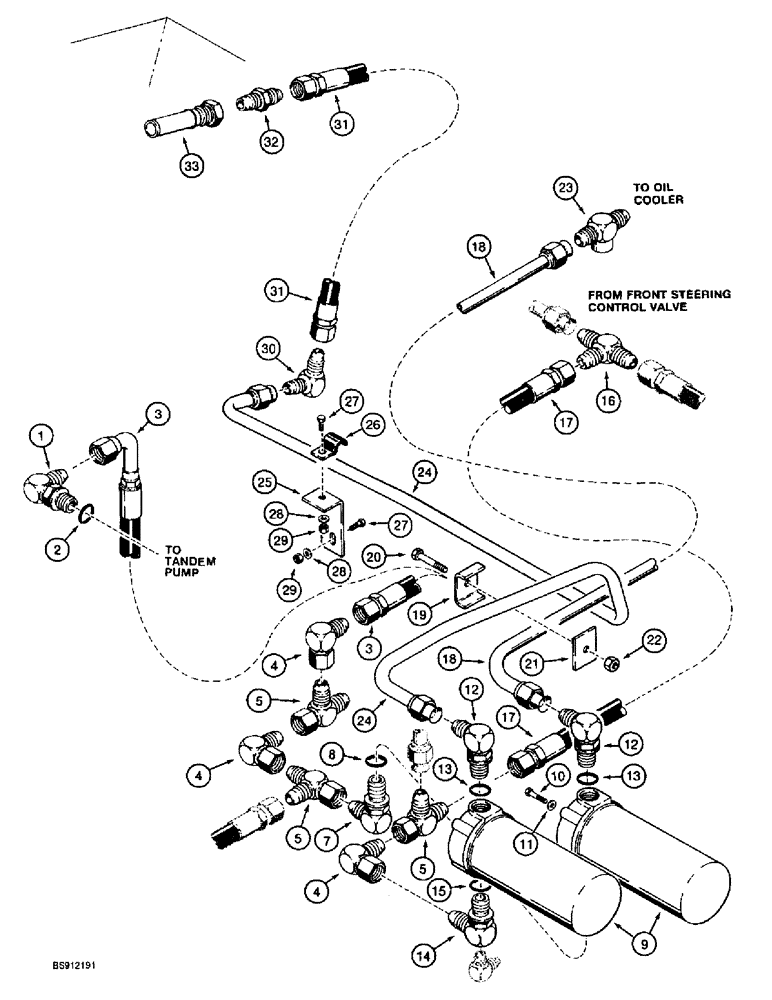

Запчасти Case 860 (8-012) - BASIC HYDRAULIC CIRCUIT - RETURN FILTERS AND LINES (08) - HYDRAULICS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

3

H439119

HOSE

- 625 mm (24-5/8 inch) long, return, tandem pump to return filter

1шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

3шт.

5

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

- 1-1/16-12 inch flare branch x flare x swivel

3шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

9

H674791

FILTER

ASSEMBLY - hydraulic oil, return, parts list figure 8-124

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

6шт.

12

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

14

H439211

FITTING

ELBOW - 90 degree, special, Includes: Ref. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

16

218-1578

TEE,37 Degree, 1 1/16"-12 x 3/4"-16, Br

- 3/4-16 flare branch x 1-1/16-12 inch flare x flare, see figure 5-08 for return lines from front steering control valve to tee

1шт.

17

H439321

HOSE

- 450 mm (17-3/4 inch) long, front steering control valve tee to tee at return filter

1шт.

18

H674899

TUBE,25.4 mm OD x 900.7, 137.3 mm L

- return filter to hydraulic oil cooler, see figure 8-014 for hydraulic oil cooler circuit

1шт.

19

H231894

CLAMP

- tube

1шт.

20

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

21

H439128

SPACER

- tube clamp

1шт.

22

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

23

218-582

TEE,1 5/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- 3/4 female PT branch x 1-5/16-12 inch flare x flare, see figure 8-014 for hydraulic oil cooler bypass circuit from tee

1шт.

24

H674929

TUBE,25.4 mm OD

- hydraulic return oil filter to reservoir

1шт.

25

H439207

BRACKET

- tube mounting

1шт.

26

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

29

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

30

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

- 90 degree, 1-5/16-12 inch flare x flare

1шт.

31

H439116

HOSE

- 520 mm (20-1/2 inch) long, Serial Range: tube-reservoir

1шт.

32

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 1 inch PT

1шт.

33

H151399

FILTER STRAINER

SCREEN - filter

1шт.
