(2-08) - AIR CLEANER ASSEMBLY - A184464

Запчасти Case 860 (2-08) - AIR CLEANER ASSEMBLY - A184464 (02) - ENGINE

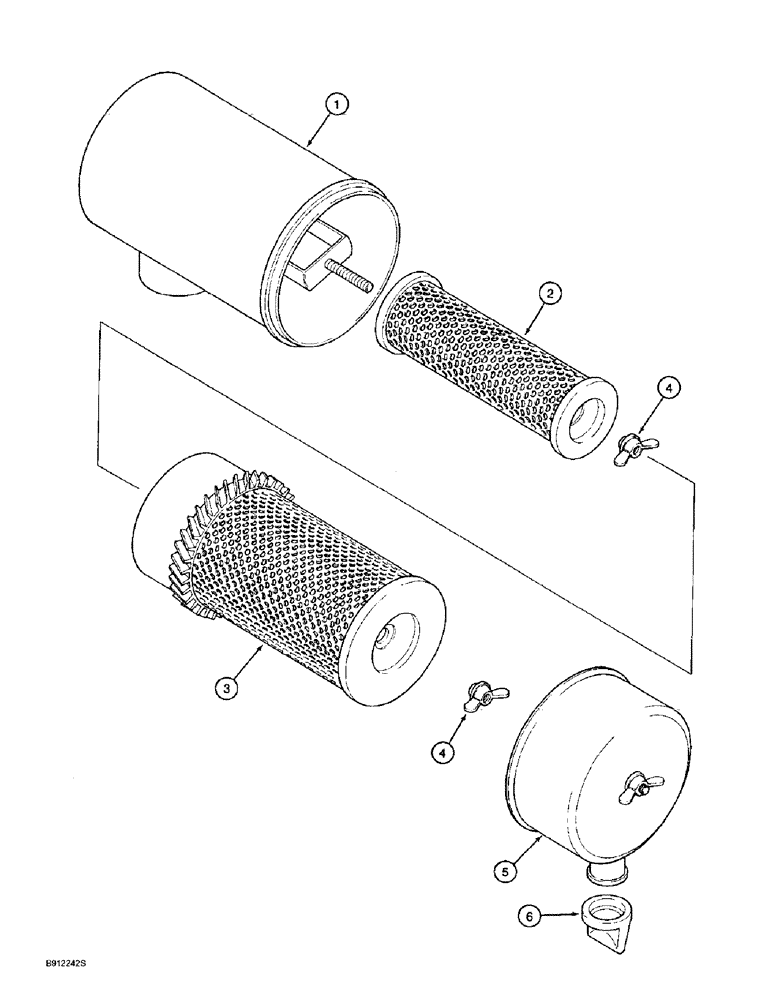

Схема запчастей Case 860 - (2-08) - AIR CLEANER ASSEMBLY - A184464 (02) - ENGINE
2
5
3
4
6
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A184464

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - air cleaner

1шт.

2

N8153

FILTER, ELEMENT

ELEMENT - secondary

1шт.

3

D56453

AIR CLEANER

ELEMENT - primary

1шт.

4

3124435R1

NUT

NUT - wing, element retaining, includes gasket

2шт.

5

A184712

COVER

- end, housing

1шт.

6

A189052

DUST VALVE

VALVE - dust, rubber, 51 mm (2 inch), rubber, not a component of air cleaner assembly

1шт.
