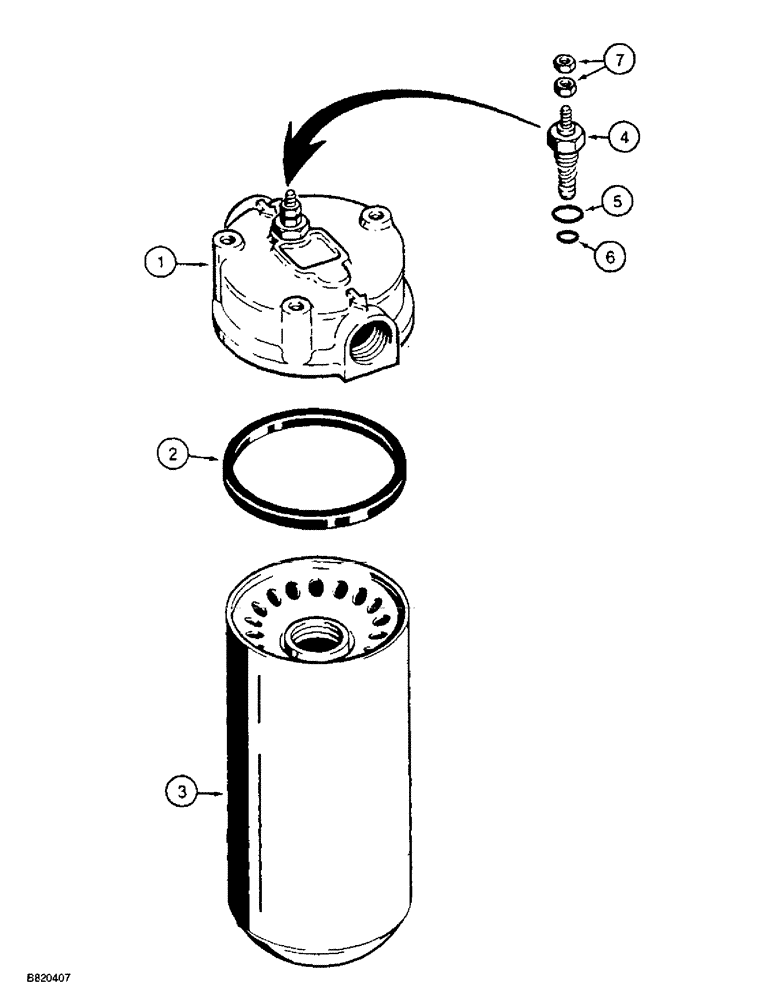

Запчасти Case 860 (8-124) - HYDRAULIC OIL RETURN FILTER ASSEMBLY - H674791 (08) - HYDRAULICS

H674791

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

123010C2

GASKET

- filter element

1шт.

3

H439069

FILTER, ELEMENT

ELEMENT - filter

1шт.

N7782

TRANSMITTER

SENDER - filter restriction, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SWITCH - sender

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

7

225-14110

NUT,#10-24

2шт.
