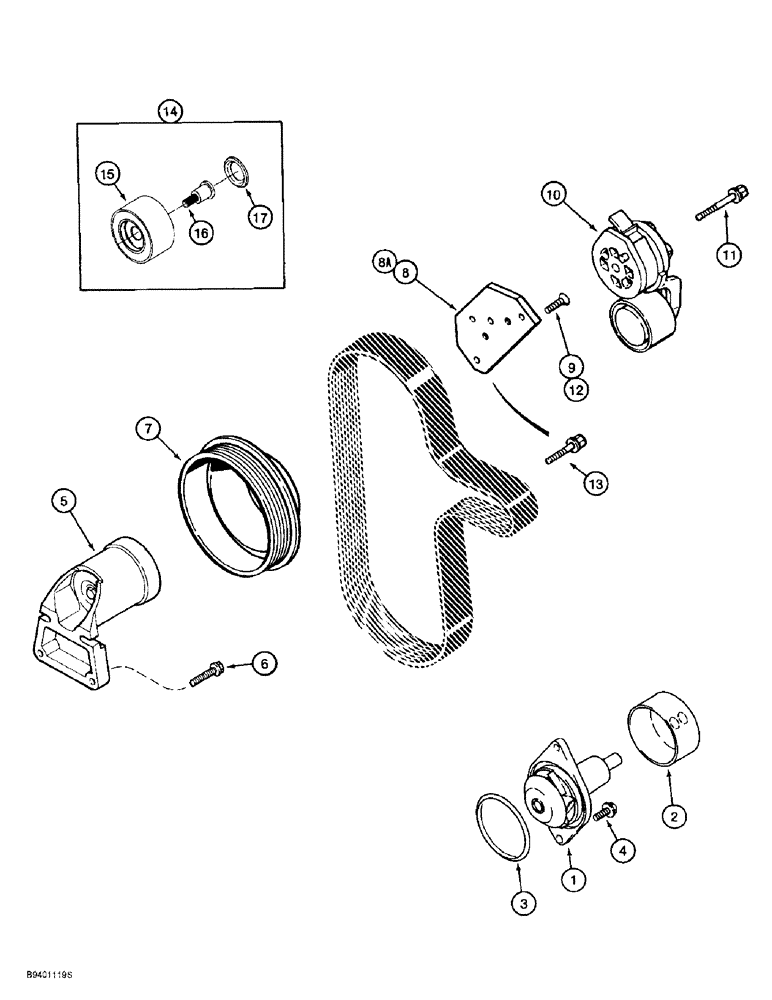

Запчасти Case 860 (2-16) - WATER PUMP SYSTEM - 4T-390 ENGINE (02) - ENGINE

A77703

PUMP, WATER

KIT - water pump, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

860 Turbo Trencher

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

BRACKET - fan pulley

1шт.

6

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

4шт.

7

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

8

J919985

SUPPORT

BRACKET - belt tensioner, no longer used, for service order item 8A, J925207 bracket

1шт.

8a

J925207

SUPPORT

BRACKET - belt tensioner

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm, Used with item 8, J919985 bracket only

2шт.

10

J918944

BELT TENSIONER

TENSIONER - belt, replaces J914086 tensioner

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

12

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm, Used with item 8A, J925207 bracket only

3шт.

13

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Used with item 8A, J925207 bracket only

1шт.

14

A77817

KIT

KIT - belt tensioner pulley, belt tensioner, used to replace pulley J918944 belt tensioner, item 10, used on engines with Engine Serial Number 44419022 & after or any engine where the belt tensioner has been replaced by J918944, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.
