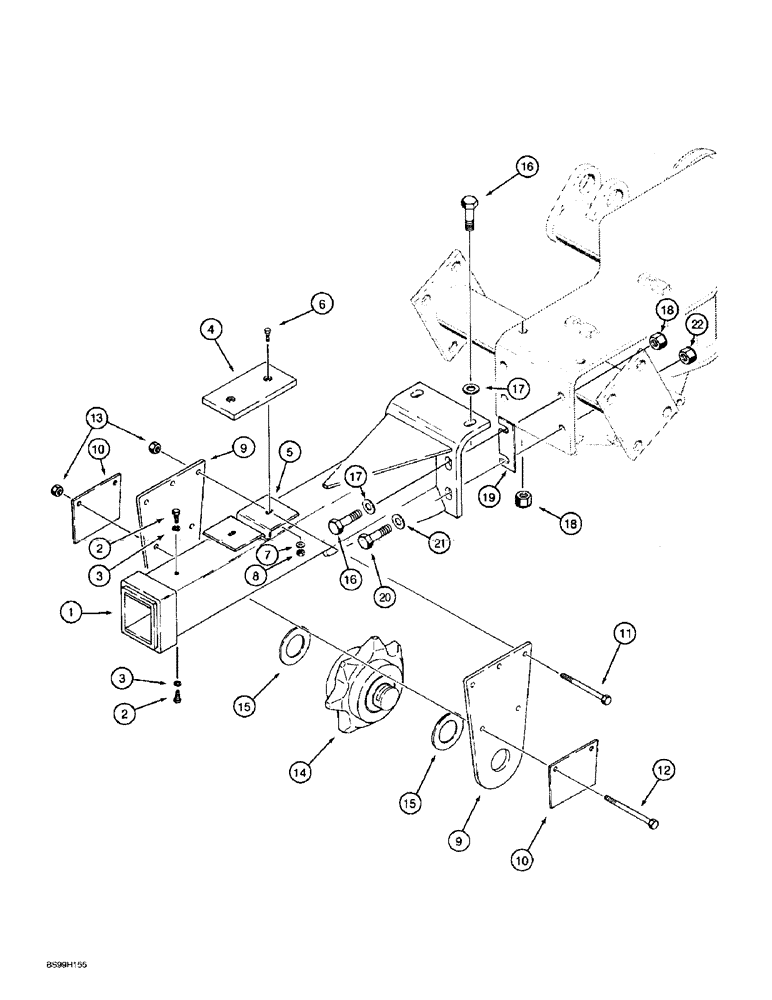

Запчасти Case 860 (9-052) - TRENCHER BOOMS AND MOUNTING - STANDARD BOOM (09) - CHASSIS/ATTACHMENTS

1

H672137

BOOM

- trencher, uses 1 idler sprocket and appropirate hardware, 4 foot, if used

1шт.

See Figure 9-050 for trencher boom mounting bracket and Figure 9-054 for standard trencher boom end.

1шт.

1

H672138

BOOM

- trencher, uses 1 idler sprocket and appropriate hardware, 5 foot, if used

1шт.

See Figure 9-050 for trencher boom mounting bracket and Figure 9-054 for standard trencher boom end.

1шт.

1

251023A1

BOOM

- trencher, uses 2 idler sprockets and appropriate hardware, 6 foot, if used

1шт.

See Figure 9-050 for trencher boom mounting bracket and Figure 9-054 for standard trencher boom end.

1шт.

1

251024A1

BOOM

- trencher, uses 2 idler sprockets and appropriate ahrdware, 7 foot, if used

1шт.

See Figure 9-050 for trencher boom mounting bracket and Figure 9-054 for standard trencher boom end.

1шт.

2

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, Hex Hd, 5/16" x 3/4"

2шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

H434548

STRIP

PAD - wear, trencher boom

1-2шт.

5

H433395

PROTECTOR

PLATE - wear pad mounting

1-2шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2-4шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2-4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self locking, 3/8 inch NC

2-4шт.

9

H433947

LARGE PLATE

PLATE - idler sprocket

2-4шт.

10

H433896

RETAINER

- idler sprocket plate

2-4шт.

11

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

- hex, 1/2 NC x 5-1/4 inch

3-6шт.

12

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex, 1/2 NC x 5-3/4 inch

2-4шт.

13

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self locking, 1/2 inch NC

5-10шт.

14

H433989

DRIVE SPROCKET

SPROCKET - idler, 8 teeth, see Figure 8-056, Ref. 1 - 6 for sprocket and related components

1-2шт.

15

H433867

WASHER

SPACER - idler sprocket

2-4шт.

16

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

17

H426817

WASHER

- flat, special, hardened

4шт.

18

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

19

H437275

SHIM,1.50mm Thk

Trencher boom to boom mounting bracket 1.50mm Thk

1шт.

20

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

- hex, 1 NC x 2-1/2 inch, grade 8

2шт.

21

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- flat, special, 1-1/16 x 1-7/8 x 9/64 inch

2шт.

22

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

2шт.
