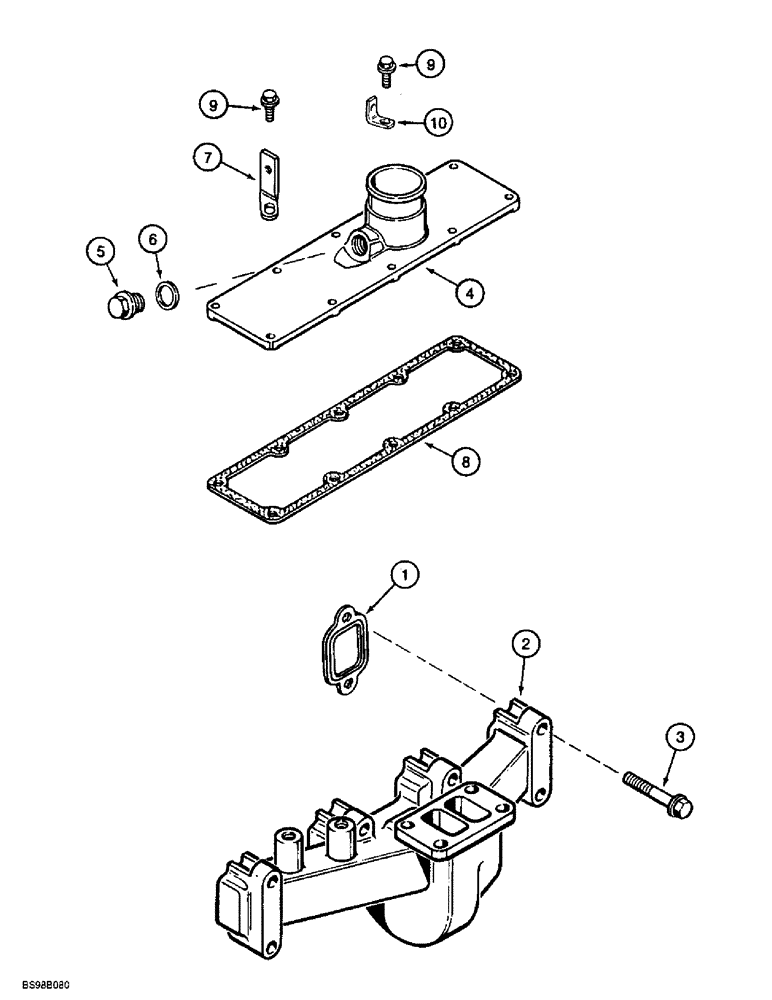

Запчасти Case 860 (2-20) - MANIFOLDS - EXHAUST, 4T-390 ENGINE (02) - ENGINE

1

J905443

MANIFOLD GASKET

- exhaust manifold

4шт.

2

J901635

MANIFOLD

- exhaust

1шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

8шт.

A77416

COVER

KIT - intake manifold, Includes: Ref. 4 - 6

1шт.

4

J904339

COVER

- intake

1шт.

5

J907185

PLUG

- manifold, intake

1шт.

6

J906773

WASHER

- plug sealing, intake

1шт.

7

J919292

SUPPORT

BRACKET - fuel tube, see item 34, figure 3-06, intake

1шт.

8

J914028

GASKET

- intake manifold

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake Hex Flg Hd, M8 x 1.25 x 25

10шт.

10

J919294

SUPPORT

BRACKET - fuel tube, see item 29, figure 3-06, intake

1шт.
